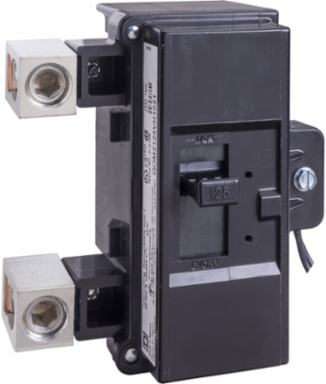

Square D QOM2125VH1021 Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount, AC shunt
Square D QOM2125VH1021 Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount, AC shunt
- MPN: QOM2125VH1021
- UPC: 785901158189
- PPN: SCH-QOM2125VH1021
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1397.72/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.
Specifications
Specifications
- Circuit Breaker Application
- primary main breaker
- Range Of Product
- QO
- Accessory / Separate Part Type
- shunt trip 120/208/240 V AC
- [In] Rated Current
- 125 A
- Device Short Name
- QOM2
Mounting Modebolt-on
Poles Description2P
Electrical Connectionlugs
Product Or Component Typecircuit breaker
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC
Complementary
- Height
- 142 mm
- Tightening Torque
- 6-6 N.m 4-65 mm² AWG 12...AWG 2/0)
- Awg Gauge
- AWG 4...300 kcmil copper or aluminum
- Depth
- 91 mm
- Network Number Of Phases
- 1 phase
- Product Destination
- QO load center
Breaking Capacity22 kA 120/240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
Product Destinationload center QO
Width129 mm
Loadcentre TypeMain Breaker
Net Weight1.245 kg
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
