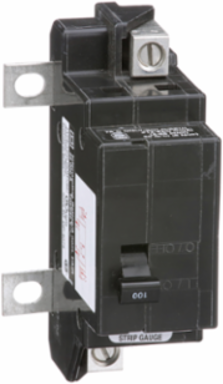

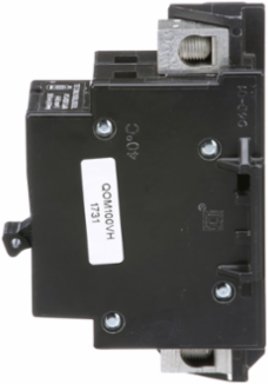

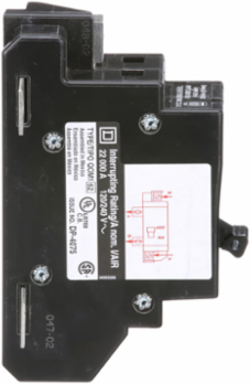

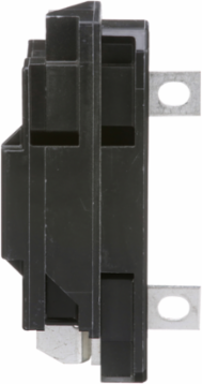

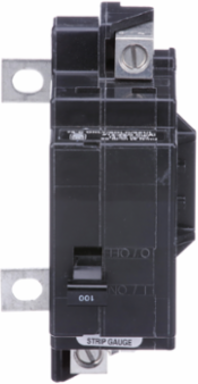

Square D QOM100VH Main breaker, QO, 100A, 2 pole, 120/240VAC, 22kA, bolt on mount
Square D QOM100VH Main breaker, QO, 100A, 2 pole, 120/240VAC, 22kA, bolt on mount
- MPN: QOM100VH
- UPC: 785901004035
- PPN: SCH-QOM100VH
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$128.94/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QOM100VH, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. With breacking capacity to 22kA. UL listed CSA certified This 2 pole QO main breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Breaking Capacity
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Net Weight
- 0.635 kg
Tightening Torque6-6 N.m 4-65 mm² AWG 12...AWG 2/0)
Specifications
- Mounting Mode
- bolt-on
- Poles Description
- 2P
- Product Or Component Type
- circuit breaker
Range Of ProductQO
[In] Rated Current100 A
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
