Leviton 16D28-UH Male Plug 3/0-4/0 AWG Crimp Tube Termination 400 Amp Type 3R
Leviton 16D28-UH Male Plug 3/0-4/0 AWG Crimp Tube Termination 400 Amp Type 3R
- MPN: 16D28-UH
- UPC: 078477720561
- PPN: LEV-16D28-UH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.66/ EA
Description

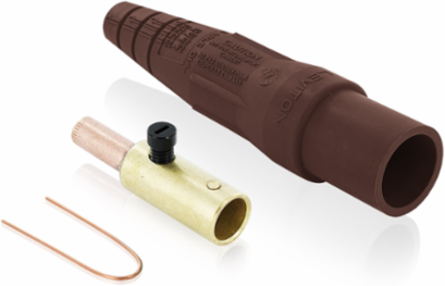

16 Series Taper Nose Cam-Type Male Plug, Contact & Insulator, Detachable, 3/0 - 4/0 AWG, Crimp Tube Termination, 400 Amp Max, 600VAC/DC, Type 3R When Mated, Brown
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw or crimp tube termination
- NEMA 3R rated for outdoor use when mated
- Designed with cylindrical profile to reduce snap
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Specifications
Standards and Certifications
- CSA Standard
- 1691
- UL
- 1691, 508 – 35k A / 600V Short Circuit Current Rating
NEMA RatingType 3R
Material Specifications
- Contacts
- Brass
Strain ReliefCopper Wire
Mechanical Specifications
- Cable Range
- 3/0-4/0 AWG
- Gender
- Male
Connection TypeCrimped
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Color
- Brown
Electrical Specifications
- Max. Amperage
- 400 Amp
Max. Voltage600 Volt
