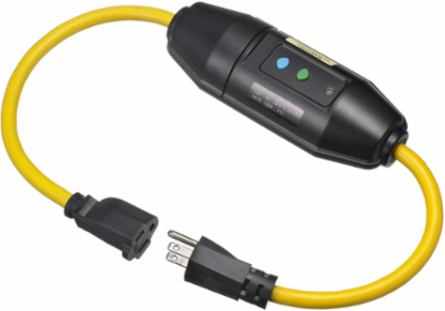

Hubbell Wiring Device-Kellems GFPILST15125M Manual Set, 15A, 120V AC, 2' - 12/3 SJTW

MPN: GFPILST15125M
UPC: 783585694221
PPN: HBL-GFPILST15125M
UNSPSC: 39121406

$154.72

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Heavy Duty Single Tap Portable In Line GFCI, Manual Set, 15A, 120V AC, 2' - 12/3 SJTW

Features

High impact UV stabilized housing for long life
All-glass circuit board provides moisture immunity
Watertight GFCI housing for use in harsh environments
Open neutral protection Trips upon loss of neutral
Self-test functionality in accordance with UL 943
Self-Test Functionality

Specifications

Key Specifications

Country of Origin	China
Industry Standard(s)	cULus 943
Application	Outdoor/Indoor
Environmental Conditions	NEMA 3R
Number of Poles	2
Phase	Single
Standard	cULus 943
Type	Portable GFCI
Wattage	1800 W
Nema Rating	5-15
Number Of Wires	3
Class Code	A40
Harmonization Code	8536308000
Sub Class Code	A40A410
Series	GFCI
BOX SIZE	2.700x16.200x10.250 (in)
Case Weight	1.020 lb.
Pallet Length	48.000 in
Pallet Width	40.000 in

Width	10.250 in
Amperage Rating	15 A
Color	Black/Yellow
NEMA Rating	5-15
Number of Wires	3
Special Features	Self-Test Functionality
Temperature Rating	-30°F (-35°C) - 150°F (66°C)
Voltage Rating	120 V
Weight	1.02 lb.
Number Of Poles	2
Style	Single Outlet
Freight Class Code	06168002
Image Actual Or Representative	R
Material	Polycarbonate
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00783585694221
Pallet Height	50.900 in
Pallet Weight	196.060 lb.
NAICS Code	335931A107
