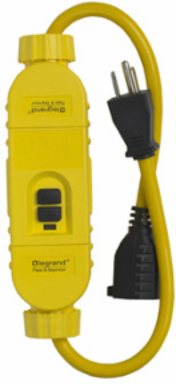

Pass & Seymour 1597PC2M Portable 2-Foot In-Line 15A GFCI with Manual Reset, Yellow, 27.75 Inch Length
- MPN: 1597PC2M
- UPC: 785007381627
- PPN: P-S-1597PC2M
- UNSPSC: 39121406
CAD
$102.51
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The perfect option for safely powering portable equipment, outdoors or in, when a GFCI-protected outlet is not accessible. Use this 2-Foot In-Line Portable GFCI (Manual Reset) when plugging in drills, saws, leaf blowers, pressure washers, power painters, etc. Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Requires portable GFCI to be manually set for use by pressing reset button upon plug in and after loss of primary power.
- Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults.
- GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Length | 27.75 in |
| Weight | 0.9 lbs |
| Finish | Matte |
| Amperage | 15.0 A |
| Indoor/Outdoor | Outdoor |
| Is Weather Resistant | No |
| Wall Plate Included | No |
| Number of Wires | 3.0 |
| Operating Temperature | -35°-66°C |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Connection Location | Top and Bottom |
| Features | Portable GFCI; Manual Reset |
| Depth | 1.75 in |
|---|---|
| Width | 2.0 in |
| Color | Yellow |
| Product Line | Pass & Seymour |
| Warranty Type | 1-Year Limited Warranty |
| Is Tamper-Resistant | No |
| Seismic Tested | No |
| Operating Temperature Min | -35.0 °C |
| Voltage | 125.0 V |
| Operating Temperature Max | 66.0 °C |
| NEMA Configuration Code | 5-15P; 5-15R |
| Outlet Type | GFCI; Self-Test |
| Number of Poles | Double Pole |
