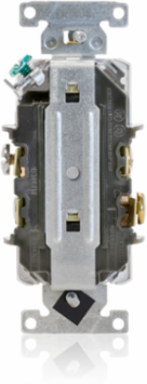

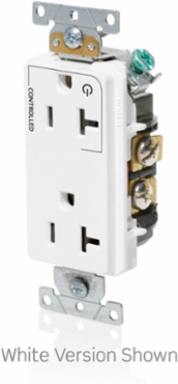

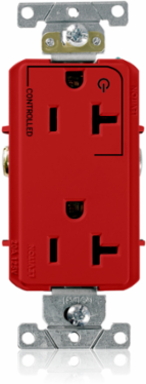

Leviton 16352-1PR 20 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding, Marked Controlled
- MPN: 16352-1PR
- UPC: 078477706022
- PPN: LEV-16352-1PR
CAD
$28.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Split-Circuit, One Outlet Marked "Controlled", Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Red
Features
- Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol. *This color is special order only
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | UL, CSA, NOM-ANCE |
| Applicable Standards | UL 498, CSA C22.2 No. 42 |
|---|---|
| NEMA | WD-1 & WD-6 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Ground Clips | Brass |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Terminal Clamp | Zinc-Plated Steel |
| Face Material | Nylon |
|---|---|
| Grounding Screw | Zinc-Plated Steel 8-32 |
| Strap Material | Zinc-Plated Steel 0.042 |
| Terminal Screws | Brass 10-32 |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire Type | Solid or Stranded Building Wire |
Product Features
| Brand | Decora Plus |
|---|---|
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Industrial Specification Grade |
| Color | Red |
|---|---|
| Feature | Split-circuit, One Outlet Marked "Controlled"|Smooth Face |
Warranty
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 75°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Grounding | Self-Grounding |
| Voltage | 125 VAC |
| Dielectric Voltage | Withstands 2000V per UL498 |
|---|---|
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
