Schneider Electric ZBY8330 Harmony XB4 Emergency Stop Legend, 90mm, Plastic, Yellow with ISO13851
- MPN: ZBY8330
- PPN: SCH-ZBY8330
CAD
$3.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

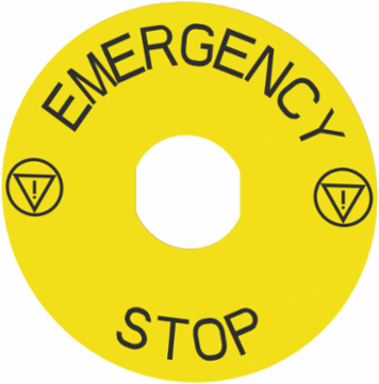

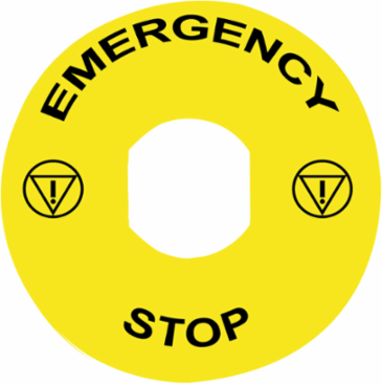

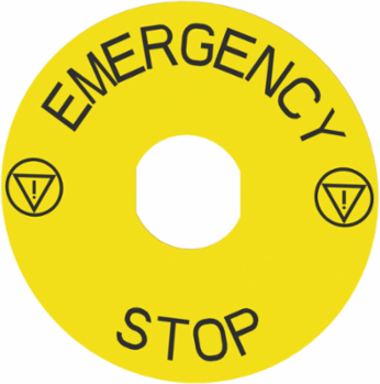

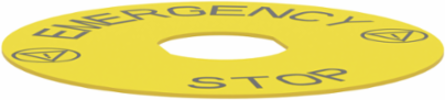

This Harmony ZBY circular legend for emergency stop function has yellow background and is marked with "emergency STOP" lettering, and a diameter of 90mm. It is compatible with Harmony XB4, XB5 and XB7 push buttons and pilot lights. This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with Harmony emergency stop or switching off unit. It provides clear and resilient symbol marking on the label, with high contrast.
Features
- Featuring a large 90mm diameter and a high-contrast bright yellow circular background, this legend plate is designed for maximum visibility from a distance or across a crowded production floor. The bold "EMERGENCY STOP" text ensures your team can react instantly during a critical machine failure, significantly improving response times and reducing the risk of workplace injury.
- Specifically engineered with a standard 22.5mm center hole, this legend plate is fully compatible with the XB4 and XB5 series of Harmony metal and plastic pushbuttons. This precise physical compatibility allows for a seamless, professional-grade installation onto control panels or pendant stations without the need for custom drilling or specialized mounting hardware.
- Constructed from high-impact, chemically resistant plastic, this legend plate is built to withstand the rigors of heavy manufacturing, including exposure to cleaning agents and mechanical vibration. The durable, permanent lettering is designed to resist fading and abrasion, ensuring that critical safety labeling remains legible and code-compliant even after years of intensive use in wash-down or high-traffic zones.
- This 90mm circular plate meets international safety standards for the clear identification of emergency shut-off devices, including ISO 13850 guidelines. By providing the required yellow-and-black contrast, it helps your facility pass rigorous safety audits and ensures your machinery meets the latest ANSI and OSHA regulations for industrial control station signage.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico, United States, ZZ |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Marking 1 Marking | EMERGENCY STOP |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0035311069656297003, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00000732993030924631, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Label Dimensions | Ø 90 mm |
| Marking | black EMERGENCY STOP yellow |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v6.3.0.1-18 |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| X C Menu | E-stop |
| Pep Code | ENVPEP2506048EN |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Accessory / Separate Part Type | legend |
| Package Weight(Lbs) | 5.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | Harmony XB4, Harmony XB5 |
| Certificate Agency | IEC 60204-1, EN/ISO 13850: 2006 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.012576008778555414 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0 kg CO2 eq., 0.031101104788925256 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Main Group | E-stop |
| Material | plastic |
| Product Or Component Type | marked legend |
| Sale Per Indivisible Quantity | 1 |
| Sustainable Packaging | No |
| User Language | English |
| Sale Per Indivisible Qty | 1 |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | ZBY circular legend is compatible with Harmony XB4 and XB5 push buttons and pilot lights.This circular legend provides clear labelling of your emergency stop devices units. It is supplied ready engraved with a marking relevant to machine operation and is compatible with emergency stop or switching off unit. It provides clear and resilient symbol marking on the label with high contrast. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Global, GLO |
| Accessory / Separate Part Category | marking accessories |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926909985 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.04721555046341962 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2506048EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506048EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Harmony XB4, Harmony XB5 |
|---|
| Product Or Component Type | marked legend |
|---|
ETIM
| ETIM 8 | EC000624 |
|---|
| ETIM 9 | EC000624 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
