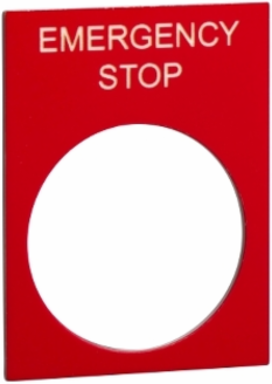

Schneider Electric ZB2BY2330 Marked legend, Harmony XAC, nameplate, 30 x 40mm, plastic, red, 22mm push button, white marked EMERGENCY STOP

MPN: ZB2BY2330
PPN: SCH-ZB2BY2330

$4.37

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Marked legend, Harmony XAC, nameplate, 30 x 40mm, plastic, red, 22mm push button, white marked EMERGENCY STOP

Features

Featuring crisp, bold white lettering engraved against a vivid red background, this nameplate maximizes visibility on busy factory floors. By providing an immediate, high-contrast visual cue for machine operators, it ensures the "EMERGENCY STOP" function can be located in a split second during a critical equipment hazard or safety event.
Designed with a precision 22mm center hole, this 30 x 40 mm rectangular legend plate mounts perfectly behind standard Harmony XAC pendant stations and matching XB4/XB5 control units. This standard mechanical footprint allows industrial electricians to swap out faded tags or upgrade safety labeling instantly without modifying the existing enclosure.
Built from highly durable, industrial-grade plastic material, this marking accessory is engineered to resist scratches, heavy impacts, and aggressive chemical cleaners. It maintains its structural integrity and sharp legibility even when subjected to harsh manufacturing environments, oily processing lines, or frequent machinery washdown cycles.
Weighing just 0.001 kg with a razor-thin profile, this compact label integrates seamlessly underneath the push-button bezel without creating mechanical interference. It delivers crucial safety compliance labeling while maintaining the ergonomic feel and tight environmental sealing of your handheld crane hoist or overhead pendant assembly.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, Spain

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Carbon Footprint Of The Distribution Phase [A4]	0.0001307636, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0000707191, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Label Dimensions	30 x 40 mm
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0 kg CO2 eq.
Pep Code	ENVPEP2506048EN
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Destination	push-button
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3926909989

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0031513047
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0 kg CO2 eq., 0.006785423
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Marking	EMERGENCY STOP
Product Or Component Type	marked legend
Sale Per Indivisible Quantity	10
Sustainable Packaging	No
User Language	English
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	ZBY circular legend is compatible with Harmony XB4 and XB5 push buttons and pilot lights. This circular legend provides clear labelling of your emergency stop devices units. It is supplied ready engraved with a marking relevant to machine operation and is compatible with Harmony emergency stop or switching off unit. It provides clear and resilient symbol marking on the label, with high contrast.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Category	marking accessory
Accessory / Separate Part Type	legend
Package Weight(Lbs)	0.800 g
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.0101382104
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2506048EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506048EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
