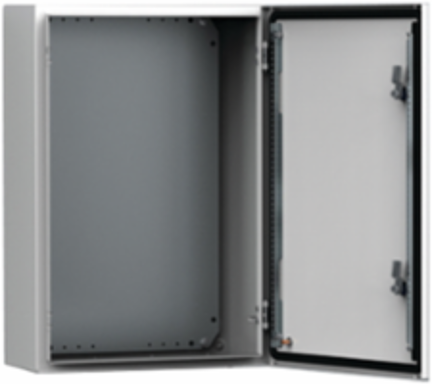

Nvent Hoffman MAS0604021R5 Single Door encl. Mild Steel, MAS with Plate, 600x400x210mm, Light Gray
Nvent Hoffman MAS0604021R5 Single Door encl. Mild Steel, MAS with Plate, 600x400x210mm, Light Gray
- MPN: MAS0604021R5
- UPC: 783510488215
- PPN: HOF-MAS0604021R5
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$948.77/ EA
Description
With metric sizing, appealing design and a suit of accessories the MAS is a perfect global solution. This Single Door Enclosure Mild Steel, MAS with Plate, MAS0604021R5 item measures 600x400x210mm with a material of Mild Steel color Light Gray.
Features
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: Complies with IP 66, TYPE 4, 12, IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
- Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
- Finish: RAL 7035 structured powder coating.
- Door: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
- Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 400
- Mounting Plate Included
- Yes
- Protection Rating
- NEMA Type 4
- Latch Quantity
- 2
- Color Code
- RAL 7035
- Door Thickness
- 1.5
- Gland Plate Opening Depth
- 96
- Number of Gland Plate Openings
- 1
- Number of Outlet
- 1
- Size
- 23.62 x 15.75 x 8.27 inch
- Insulation
- No
- Cable Entry
- No
- Cubic Capacity
- 2 Cu-ft
Height (H)600
Depth (D)210
Panel Size570 x 350
Max Mounting Depth7.56
FinishPowder Coated
Body Thickness1.5
Gland Plate Opening Width310
Gland Plate Type2
Weight31.64
MaterialMild Steel
ColorRAL 7035 Light Gray
ConstructionBody: 18 gauge | Door: 16 gauge
MountingWall Mounted
NEMA RatingNEMA Type 4 | NEMA Type 12 | NEMA Type 13
