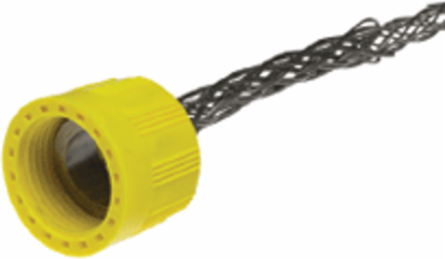

Woodhead 5636M MAX-LOC/Watertite Cord Grips, 1" NPT, Straight Male, Body Size F4, Cable Diameter 12.70-15.88mm (.500-.625")

MAX-LOC/Watertite Cord Grips, 1" NPT, Straight Male, Body Size F4, Cable Diameter 12.70-15.88mm (.500-.625")

Woodhead 5636M MAX-LOC/Watertite Cord Grips, 1" NPT, Straight Male, Body Size F4, Cable Diameter 12.70-15.88mm (.500-.625")

MPN: 5636M
PPN: WOD-5636M

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$148.30/ EA

Loading add to cart quantity...

Description

MAX-LOC®/Watertite® Cord Grips, 1" NPT, Straight Male, Body Size F4, Cable Diameter 12.70-15.88mm (.500-.625")

Specifications

Material Info

Engineering Number: 5636M

Reference - Drawing Numbers

Sales Drawing: SD-130099-007

Agency Certification

CSA: LR32159

Physical

Thread Size: 1" NPT

Body Style: Straight

Color - Grommet: N/A

Material - Body: Nylon

Bale Length: N/A

Cable Diameter: 12.70-15.88mm (.500-.625")

Material - GripStainless Steel

Mesh LengthN/A

Approximate Break StrengthN/A

GenderMale

Number of Holes1

General

Product Literature Order No: 987650-8064

Overview: Strain-Relief Cord Grips

Product Name: MAX-LOC®, Watertite®

NEMA Rating: NEMA 3R

Series: 130099

Product Family: Cable Grips

O-RingN/A

TypeStrain Relief Grip

UPC78678856364

Use WithMAX-LOC® Lock Nut 1" NPT 130099-0145, MAX-LOC® Gasket Sealing Ring 1" NPT 130099-0151, MAX-LOC® O-Ring, 1" NPT 130180-0334

Eye TypeN/A
