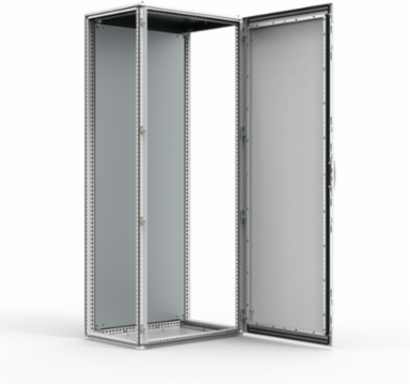

nVent Hoffman MCS20086HP Modular Single Door Mild Steel Enclosure 78.74 x 31.5 x 23.62 Inch, IP66
- MPN: MCS20086HP
- UPC: 783510495879
- PPN: HOF-MCS20086HP
- UNSPSC: 39121334
CAD
$4688.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Modular, Single Door, MCS-HP maintains IP66/Type 4 rating and can be installed in severe environments. This Modular Single Door Mild Steel, MCS-HP, MCS20086HP item measures 2000x800x600mm with a material of Mild Steel color Light Gray.
Features
- Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660. Including integrated external hole pattern.
- Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 66 | TYPE 4, 12 | IK 10.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 800
- Protection Rating
- NEMA Type 4
- Finish
- Powder Coated
- Body Thickness
- 1.5
- Weight
- 138.5
- Cable Entry
- No
- Color
- RAL 7035 Light Gray
- Mounting
- Free Standing
Height (H)2,000
Depth (D)600
Max Mounting Depth559
Color CodeRAL 7035
Door Thickness2
MaterialMild Steel
Size78.74 x 31.5 x 23.62 inch
ConstructionBody: 16 gauge | Door: 14 gauge
NEMA RatingNEMA Type 12 | NEMA Type 13
