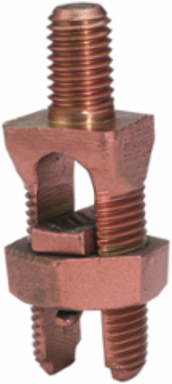

Burndy KC34B1 SERVIT POST Mechanical Grounding Connector, 3/0 AWG - 500 kcmil, 3/4 Inch Stud
- MPN: KC34B1
- UPC: 781810256756
- PPN: BUR-276671
CAD
$471.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical Grounding Connector, Cable to Flat, 3/0 AWG - 500 AWG (Str), 3/4" Stud.
Documentation & Downloads
Specifications

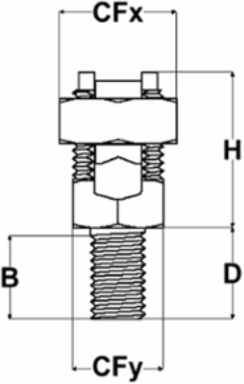

Dimensions
| Dimension - B Length fraction | 1-1/2 in |
|---|---|
| Dimension - Bolt Size fraction | 3/4 |
| Dimension - Height fraction | 2-3/8 |
| Dimension - Nut Width inch | 2.00 in |
| Dimension - Threads per inch | 10 |
| Dimension - Body Width inch | 1.62 in |
|---|---|
| Dimension - D inch | 1.75 in |
| Dimension - Length Overall inch | 4.12 in |
| Dimension - P inch | 0.85 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Listed Direct Burial | Yes |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
| Certification - ETL | No |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | EX |
Conductor Related
| Conductor - Copper Str Size | 3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil |
|---|---|
| Physical Attribute - Number of Conductors Accommodated Total | 1 |
| Conductor - Copper Str Size Range | 3/0 AWG-500 kcmil |
|---|
General
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
|---|---|
| Plated | N |
| Stud Installation Torque inch pounds | 1050 LBS/in |
| Trade Name | SERVIT POST™ |
| UPC | 781810256756 |
| Material | Copper Alloy, Cast |
|---|---|
| Plating Type | Unplated |
| Sub Brand | SERVIT POST |
| Type | KC and K2C Series |
| UPC 12 Digit | 7818102567566 |
Logistics
| Minimum Pack Quantity | 1 |
|---|
