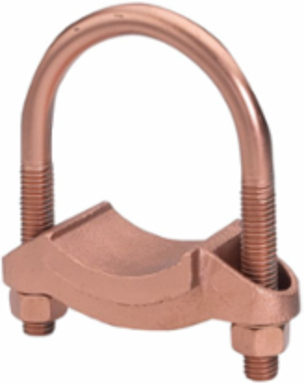

Burndy GG151 Mechanical Grounding Connector, Copper Bar, Strap, Braid or Cable to Rod or Tube, 1" IPS
- MPN: GG151
- UPC: 781810260043
- PPN: BUR-02001039
- UNSPSC: 39121408
CAD
$118.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mechanical Grounding Connector, Copper Bar, Strap, Braid or Cable to Rod or Tube, 1" IPS.
Features
- High copper alloy ground connector for joining bar, strap, braid or cable to rod or tube
- Rated for Direct Burial in earth of concrete
- UL467 Listed
- One wrench installation
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Rod Size
- 1 1/8 in;1 1/4 in
- Dimension - Height fraction
- 3-3/8 in
- Dimension - Width inch
- 2.63 in
- Width
- 3.500 in
- Installation Torque Recommended in-lb
- 240 LBS/in
- Plated
- N
- Product Type
- Mechanical
- Standards - RoHS Compliance Status
- EX
- Standard
- UL467
- Class Code
- B41
- Harmonization Code
- 8535908060
- Lead Time
- 12 wk
- UL Listed
- No
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Package - GTIN - Package
- 30781810260044
- Package Quantity
- 11 EA
- Pallet - GTIN - Package
- 70781810260042
- Standard Package Quantity
- 11
Conductor - Copper Tube Std Size1 IPS IPS
Dimension - B Length inch1.31 in
Dimension - Height inch3.38 in
Dimension - Width mm67 mm
Industry Standard(s)UL467
Material Type - ScrewDURIUM™ Silicon Bronze
Plating TypeUnplated
Standards - Industry Standards MetUL467
U Bolt Type244
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Sub Class CodeB41BD3F
MaterialCopper Alloy, Cast
BOX SIZE4.500x4.500x6.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00781810260043
Case - SCC-14 Next Lower Level Sub Pack30781810260044
Package - Total Units11 EA
Package Weight0.000 lb.
Pallet Weight0.000 lb.
NAICS Code3359319102
Certifications
- CSA Approved
- No
- ETL
- No
- UL Recognized
- No
cULusNo
UL Listed Direct BurialYes
