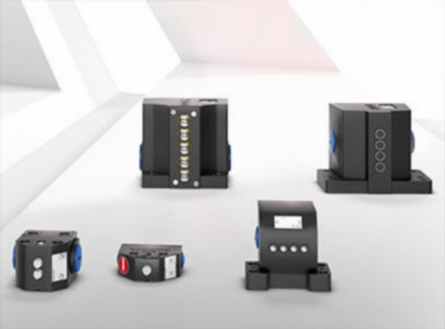

Balluff BNS 829-D04-D16-100-10 Mechanical multiple position limit switches with interchangeable plunger unit BNS 829-D04-D16-100-10
Balluff BNS 829-D04-D16-100-10 Mechanical multiple position limit switches with interchangeable plunger unit BNS 829-D04-D16-100-10
- MPN: BNS 829-D04-D16-100-10
- PPN: BAL-BNS019H
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1177.80/ EA
Description
Mechanical multiple position limit switches with interchangeable plunger unit are available for standard applications and for applications with safety switching positions. The whole plunger unit can be removed using two bolts to replace the individual plunger. This saves time and money if service is required because it is not necessary to remove the whole switch. The switches are recognizable by the blue-colored anodized ram plate
Specifications
Specifications
- Dimension
- 120 x 105 x 83 mm
- Number of switching positions
- 4x Chisel
- Operating principle
- 1-4. Switch position: Mechanical
- Rated operating voltage Ue
- 1-4. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Switch position spacing
- 16 mm
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, WEEE
Housing materialAluminum
VersionSnap contact
Continuous current1-4. Switch position: 6 A
InstallationVertical
Approach speed1-4. Switch position: 40 m/min
Connection type1-4. Switch position: Screw terminal
IP ratingIP67
Downloads
