Balluff

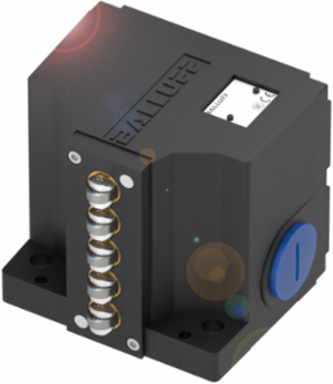

Balluff BNS 819-B03-D12-61-12-10 Mechanical Limit Switch, 79 x 48 x 63 mm, 3 Positions, IP67, Anodized Aluminum

Mechanical Limit Switch, 79 x 48 x 63 mm, 3 Positions, IP67, Anodized Aluminum
  • MPN: BNS 819-B03-D12-61-12-10
  • PPN: BAL-BNS0287

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$714.52/ EA

Description

Mechanical Limit Switch, 79 x 48 x 63 mm, 3 Positions, IP67, Anodized Aluminum

Specifications

Specifications

Country of Origin
China
Housing material
Aluminum, Anodized
Version
Snap contact
Continuous current
1-3. Switch position: 6 A
Installation
Vertical
Approach speed
1-3. Switch position: 40 m/min
Connection type
1-3. Switch position: Screw terminal
IP rating per IEC 60529
IP67
Dimension79 x 48 x 63 mm
Number of switching positions3x Chisel
Operating principle1-3. Switch position: Mechanical
Rated operating voltage Ue1-3. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing12 mm
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; CCC; WEEE
