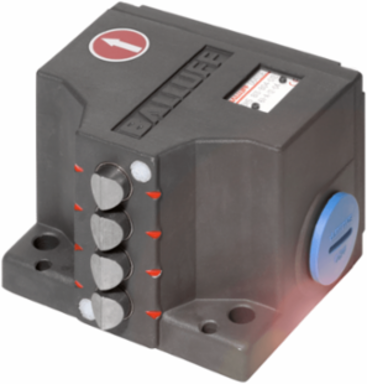

Balluff BNS 813-B02-E12-61-A-20-01 Mechanical multiple position limit switches with safety switch positions BNS 813-B02-E12-61-A-20-01
Balluff BNS 813-B02-E12-61-A-20-01 Mechanical multiple position limit switches with safety switch positions BNS 813-B02-E12-61-A-20-01
- MPN: BNS 813-B02-E12-61-A-20-01
- PPN: BAL-BNS02F4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$829.92/ EA
Description
For safety functions such as Emergency Stop or end-of-travel limitation with safety switches in accordance with DIN EN 60204-1/VDE 0113The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening. The switching is protected even with welded contacts.The number of safety switching points can be combined freely and with standard switching elements.
Specifications
Specifications
- Housing material
- Aluminum
- Version
- Safety EN 60204-1
- Continuous current
- 1-2. Switch position: 6 A
- Installation
- Vertical
- Approach speed
- 1-2. Switch position: 30 m/min
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, CSA, WEEE
Number of switching positions2x E-chisel
Operating principle1-2. Switch position: Mechanical
Rated operating voltage Ue1-2. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Connection type1-2. Switch position: Screw terminal
IP ratingIP67
