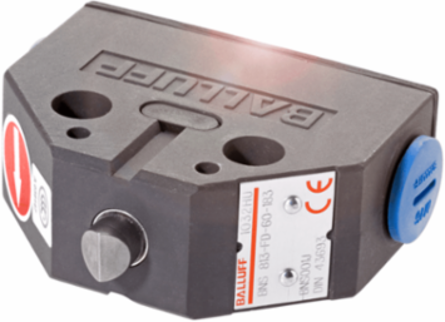

Balluff BNS 813-FD-60-183-FD Mechanical single position limit switches with safety switch positions BNS 813-FD-60-183-FD
- MPN: BNS 813-FD-60-183-FD
- PPN: BAL-BNS001K
CAD
$420.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
For safety functions such as Emergency Stop or end-of-travel limitation with safety switches in accordance with DIN EN 60204-1/VDE 0113The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening. When the ram moves, the contact is immediately interrupted. The switching is protected even with welded contacts.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 74 x 28 x 76.5 mm
- Number of switching positions
- 1x Chisel
- Operating principle
- 1. Switch position: Mechanical
- Rated operating voltage Ue
- 1. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Connection type
- 1. Switch position: Screw terminal
- IP rating
- IP67
Housing materialAluminum
VersionSafety EN 60204-1
Continuous current1. Switch position: 6 A
Installationany
Approach speed1. Switch position: 40 m/min
Ambient temperature-5-85 °C
Approval/ConformityCE, CCC, WEEE
