Documentation & Downloads

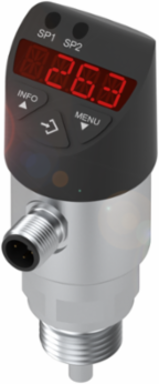

Balluff BFT 6025-HV003-A02A0C-S4 Media-contacting temperature sensors - BFT0012
- MPN: BFT 6025-HV003-A02A0C-S4
- PPN: BAL-BFT0012
CAD
$673.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Media-contacting temperature sensors - BFT0012
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Measuring element
- Pt1000
- Analog output
- Analog, current 4…20 mA
- Connection
- Connector, M12x1-Male, 4-pin
- Process connection
- G 1/2" outer
- Gasket, material
- Fluoroelastomer
- Pressure rating max.
- 150 bar
- IP rating
- IP65, IP67
Measuring range-20...80 °C
Operating voltage Ub15...35 VDC
Switching outputPNP
Installation length from contact surface25 mm
Process connection material1.4571 stainless steel
Housing materialPC/ABS; TPE-E, PC, 1.4301 stainless steel
Ambient temperature-20...80 °C
Approval/ConformityCE; cULus; WEEE
