Brady 7183-1HV MEDICAL AIR Pipe Marker, 4" H x 24" W, Fits Pipes 8" Dia. or Larger
- MPN: 7183-1HV
- UPC: 754473813406
- PPN: BRD-7183-1HV
- UNSPSC: 55121737
CAD
$8.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

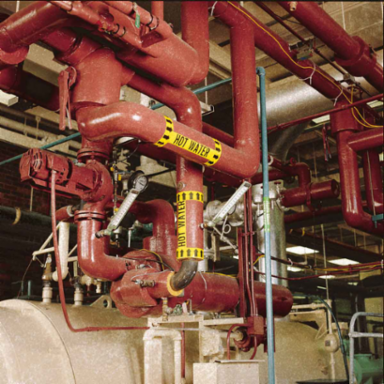

Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
Features
- Banding each end of a pipe marker with directional flow arrow tape is recommended
- Style 1HV pipe markers measure 4 in. x 24 in., come with one marker per card and fit 8 in. or greater pipe diameter
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- White on Blue
- Enables Industry Compliance
- ANSI A13.1-2007
- Language
- English
- Pipe Marker Style
- 1HV
- Primary Noun, Basic Function
- Pipe Marker
- Reflective Type
- Non-Reflective
- Text Legend
- MEDICAL AIR
- Brady Material Number
- B-946
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Weather-Resistant
- Average Outdoor Durability
- 8 to 10 Years
- Dimensions
- 4 in H x 24 in W
- Dimensions 2
- 4 in H x 24 in W
- Height (mm/cm/m)
- 101.6 mm
- Maximum Service Temperature °F
- 180 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 203.2 mm
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 4 in x 24 in
- Thickness (in/ft/yd)
- 0.004 in
- Width (in/ft/yd)
- 24 in
Brand NameBrady®
Compatible Surface TypesGeneral
FinishGloss
Pipe Marker Mounting StyleSelf-Adhesive
Pre-Printed Areas on LabelPipe Contents
Printer and Label ApplicationsGeneral Identification; Pipe Marker
Self-Adhesive Pipe Marker FormatDie-Cut on Cards
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialVinyl
SAP B-NumberB-946
Character Height (in/ft/yd)2 in
Dimensions (Metric)101.6 mm H
Height (in/ft/yd)4 in
Maximum Service Temperature °C82 °C
Minimum Application Temperature °C-18 °C
Minimum Outside Pipe Diameter (in/ft/yd)8 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 8" Dia. or larger
Size1HV
Thickness (mm/cm/m)0.102 mm
Width (mm/cm/m)60.96 cm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
