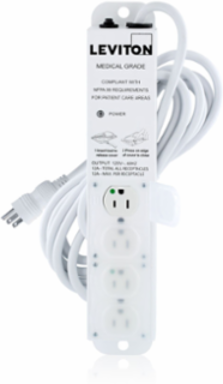

Leviton 5304M-1N5 Medical Grade Power Strip with 4 NEMA 5-15R Outlets, 15 Amp, 15 Foot Cord
- MPN: 5304M-1N5
- UPC: 078477611807
- PPN: LEV-5304M-1N5
CAD
$241.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp (12 Amp Max Continuous Load) 125VAC, Medical Grade Power Strip With 4 NEMA 5-15R Outlets With Locking Covers, 15-FT Power Cord, Special Purpose Relocatable Power Tap (SPRPT), UL 1363A, UL 60601-1, and UL 60950-1. Operable in Isolated Power Application White powder coating contains up to 25% post-consumer recycled plastic, mitigating plastic waste and reducing carbon emissions
Features
- According to Centers for Medicare & Medicaid Services (CMS): "Power strips providing power to patient care-related electrical equipment must be Special-Purpose Relocatable Power Taps (SPRPT) listed as UL 1363A or UL 60601-1."
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| NFPA | NFPA 99 2012 ed |
|---|---|
| UL 60601-1 and CSA C22.2 | No.60601-1 |
| UL 1363A and CSA C22.2 | No. 21 |
|---|---|
| UL 60950-1 and CSA C22.2 | No. 60950-1 |
Performance Data
| Inform Technology | No |
|---|
| Maximum Leakage Current | <100µA |
|---|
Material Specifications
| Enclosure | Powder Coated Steel |
|---|---|
| Outlet Covers | Polypropylene |
| Line Cord | #14/3 SJT |
|---|
Mechanical Specifications
| HG Outlet Configuration | NEMA 5-15R |
|---|
| HG Plug Configuration | NEMA 5-15P |
|---|
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | 0°C to 40°C |
|---|
| Storage Temperature | -10°C to +50°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Frequency | 60Hz |
| Number of Receptacles | 4 |
| Voltage | 125 VAC |
| Cord Length | 15 Foot |
|---|---|
| Grade | Medical |
| Surge Protection | No |
