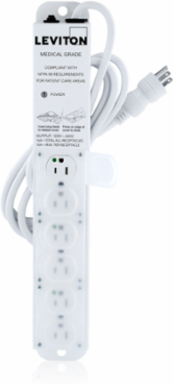

Leviton 5306M-1N7 Medical Grade Power Strip with 6 NEMA 5-15R Outlets, 15 Amp, 7 Foot Cord
- MPN: 5306M-1N7
- UPC: 078477611920
- PPN: LEV-5306M-1N7
CAD
$241.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp (12 Amp Max Continuous Load) 125VAC, Medical Grade Power Strip With 6 NEMA 5-15R Outlets With Locking Covers, 7-FT Power Cord, Special Purpose Relocatable Power Tap (SPRPT), UL 1363A, UL 60601-1, and UL 60950-1. Operable in Isolated Power Applications White powder coating contains up to 25% post-consumer recycled plastic, mitigating plastic waste and reducing carbon emissions
Features
- According to Centers for Medicare & Medicaid Services (CMS): "Power strips providing power to patient care-related electrical equipment must be Special-Purpose Relocatable Power Taps (SPRPT) listed as UL 1363A or UL 60601-1."
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- NFPA
- NFPA 99 2012 ed
- UL 60601-1 and CSA C22.2
- No.60601-1
UL 1363A and CSA C22.2No. 21
UL 60950-1 and CSA C22.2No. 60950-1
Performance Data
- Inform Technology
- No
Maximum Leakage Current<100µA
Material Specifications
- Enclosure
- Powder Coated Steel
- Outlet Covers
- Polypropylene
Line Cord#14/3 SJT
Mechanical Specifications
- HG Outlet Configuration
- NEMA 5-15R
HG Plug ConfigurationNEMA 5-15P
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
Storage Temperature-10°C to +50°C
Electrical Specifications
- Amperage
- 15 A
- Frequency
- 60Hz
- Number of Receptacles
- 6
- Voltage
- 125 VAC
Cord Length7 Foot
GradeMedical
Surge ProtectionNo
