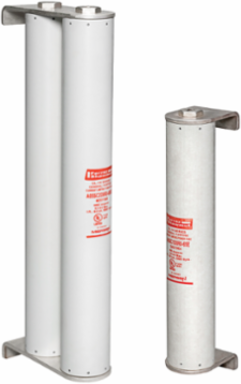

Mersen A155C1D0R0-10E Medium Voltage Fuse 15500V 10A Clip-Lock Mount 3 Inch Diameter
- MPN: A155C1D0R0-10E
- UPC: 782001804411
- PPN: FER-A155C1D0R0-10E
CAD
$1634.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen Amp-Trap fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These general purpose current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double or triple barrels 3 inch diameter (size D) and mount in unique cam-locking clips for superior connections as well as easy installation and replacement.
Specifications
Key Specifications
- Rated voltage AC UL
- 15500 V
- Ampere Rating
- 10 A
- Speed/Characteristic
- E-Rated
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System Type
- Visual Indicator
- Connection/Terminal Type
- Blade
- Length
- 22.81 in
- Weight
- 14 lb
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip-lock
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialPolyTube
Height4.31 in
