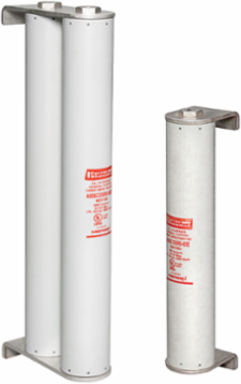

Mersen A155C3D0R0-300E Medium Voltage Fuse 15500V 300A E-Rated Clip-Lock Mount 3 Inch Diameter
Mersen A155C3D0R0-300E Medium Voltage Fuse 15500V 300A E-Rated Clip-Lock Mount 3 Inch Diameter
- MPN: A155C3D0R0-300E
- UPC: 782001804558
- PPN: FER-A155C3D0R0-300E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Mersen Amp-Trap fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These general purpose current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double or triple barrels 3 inch diameter (size D) and mount in unique cam-locking clips for superior connections as well as easy installation and replacement.
Specifications
Specifications
- Rated voltage AC UL
- 15500 V
- Ampere Rating
- 300 A
- Speed/Characteristic
- E-Rated
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System Type
- Visual Indicator
- Connection/Terminal Type
- Blade
- Width
- 3 in
- Height
- 11.56 in
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip-lock
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialPolyTube
Length22.81 in
Weight40.1 lb
