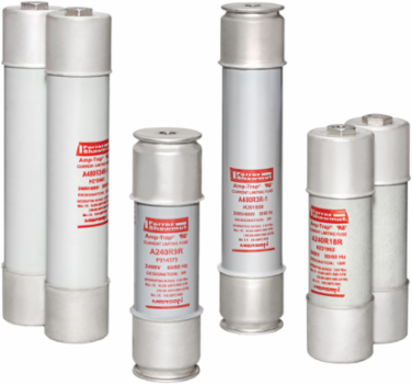

Mersen A240R4R Medium Voltage Fuse 2400V R-Rated Ferrule Mount 3 Inch Diameter
- MPN: A240R4R
- UPC: 782001800055
- PPN: FER-A240R4R
CAD
$1895.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips
Specifications
Key Specifications
- Rated voltage AC UL
- 2400 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- R-Rated
- AC Max I.R./Breaking Capacity: I1
- 65 kA
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Epoxy
- Weight
- 7.5 lb
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip
Design Details4R
Indication System TypeVisual Indicator
Connection/Terminal TypeFerrule
Length10.88 in
