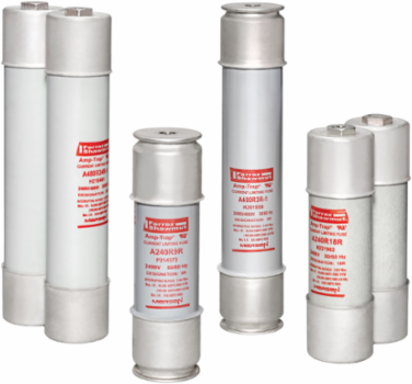

Mersen A480R9R-1HE Medium Voltage Fuse 4800V R-Rated 3 Inch Ferrule Mount, Epoxy Body, 50 kA Capacity
Mersen A480R9R-1HE Medium Voltage Fuse 4800V R-Rated 3 Inch Ferrule Mount, Epoxy Body, 50 kA Capacity
- MPN: A480R9R-1HE
- UPC: 782001801472
- PPN: FER-A480R9R-1HE
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3575.32/ EA
Description
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips
Specifications
Specifications
- Rated voltage AC UL
- 4800 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- R-Rated
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Epoxy
- Length
- 16.13 in
- Weight
- 11.2 lb
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip
Design Details9R
Indication System TypeVisual Indicator
Connection/Terminal TypeFerrule
Width3 in
Height3 in
