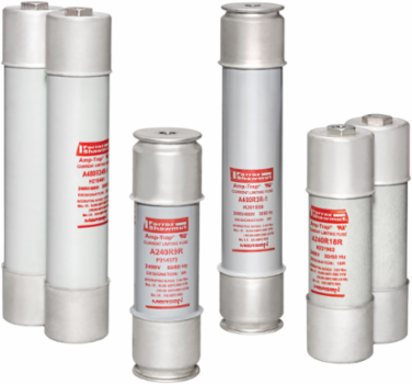

Mersen A072F2D0R0-24R Medium Voltage Fuse 7200V 3 Inch R-Rated Ferrule Mount for Motor Protection
- MPN: A072F2D0R0-24R
- UPC: 782001805142
- PPN: FER-A072F2D0R0-24R
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips
Specifications
Key Specifications
- Rated voltage AC UL
- 7200 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- R-Rated
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- GMG
- Length
- 15.88 in
- Weight
- 20 lb
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip
Design Details24R
Indication System TypeVisual Indicator
Connection/Terminal TypeFerrule
Width3 in
Height6.41 in
