PMA

PMA PIST-10B/NP.50 Medium Wall Conduit

  • MPN: PIST-10B/NP.50
  • UPC: 786209698957
  • PPN: T-B-PIST-10B/NP.50

CAD

$352.07

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

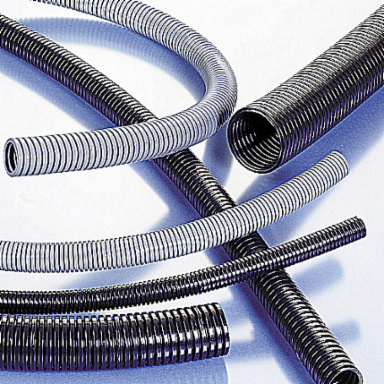

Highly Flexible, Medium Duty Conduit, Fine Profile, Made of Polyamide 12, Conduit Size NW 10, Thread Fitting M12x1.5, PG09, Black, No Logo, 50 Meters

Specifications

European Specifications (ETIM)

ETIMEC001175 Corrugated plastic hose
Outer diameter13mm
MaterialPolyamide 12
Operating temperature-50 - +95°C
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedN
Halogen freeY
Approved according to URN
Approved according to LUL/British StandardN
Approved according to UTACN
Approved according to NF F 16-101N
Nominal diameter12mm
Inner diameter9.6mm
Compressive strength175N
Fire resistance in accordance with UL94V0
ColourBlack
Bending strengthFlexible
Closable (two-part)N
Approved according to DIN EN 61386-23N
Approved according to CSAN
Approved according to Lloyd's Register TAN
Approved according to DIN 5510N

Packaging

Inner Quantity1
Outer Dimensions (inches)47.24x31.49x35.43
Outer Quantity20
Weight Uom3.28 lbs. Each

North American Specifications (UNSPSC)

UNSPSC39131706 Electrical conduit
Brand NamePMA
ApplicationMachine
Outside Diameter0.51 Inch
Length50 m
MaterialPolyamide/Nylon 12
IGCC5535 Electrical conduit
TypeMedium Wall Conduit
Trade SizeNW07
Inside Diameter0.38 Inch
FlexibilityHighly Flexible
ColorBlack
Medium Wall Conduit
