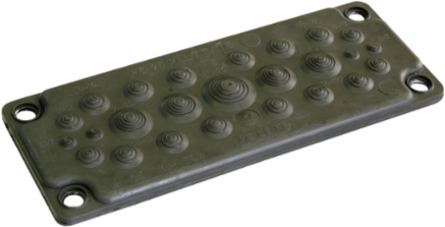

Schneider Electric NSYAECPFLT7 Cable Entry Membrane, 7 Entrances, IP66, TPE Material, Multi-Purpose
- MPN: NSYAECPFLT7
- PPN: SCH-NSYAECPFLT7
CAD
$14.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for optimal performance in demanding environments, this cable entry membrane from Schneider Electric offers exceptional durability and versatility. With an IP66 rating, it ensures reliable protection against dust and water, making it ideal for various applications in automation and control, as well as data and communication sectors. The membrane accommodates up to seven cable entries and is constructed from high-quality thermoplastic elastomer, providing resistance to oil, UV rays, and fire, ensuring longevity and safety in harsh conditions. Its compact dimensions and easy installation make it a practical choice for enhancing cable management in compatible PanelSeT enclosures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
- Width
- 7.64 in
Height1.57 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Entry Number
- 2 x 24-54 mm, 1 x 30-60 mm, 4 x 10-14 mm, 7
- Environmental Characteristic
- oil resistant UL 157 FIMKO, UV resistant, weatherproof, fire resistance UL 94 V0
- Local Publishable Date
- 2026-04-13
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- by fixing element
- Material
- TPE (thermoplastic elastomer)
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Accessory Separate Part Category
- cable management accessory
- Pep Code
- ENVPEP1001004EN
- Height Useful
- 40 mm
- Width Real
- fixing center: 194 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 membrane, 1 fixing elements
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Flame RetardanceV0 conforming to UL 94
Mounting Supportcable gland plate
Product Or Component Typecable entry membrane
RangePanelSeT
Sustainable PackagingNo
Warranty In Months18
Height Nominal40 mm
Width Nominalexternal: 214 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Ambient Air Temperature For Operation-40-100 °C, -40-100 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP66
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- cable entry membrane
ETIM
- ETIM 8
- EC000211
ETIM 9EC000211
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
