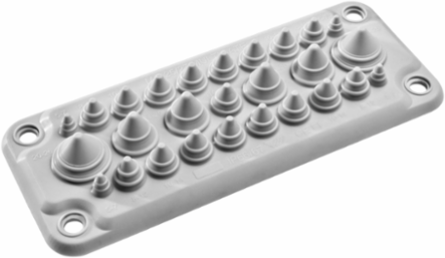

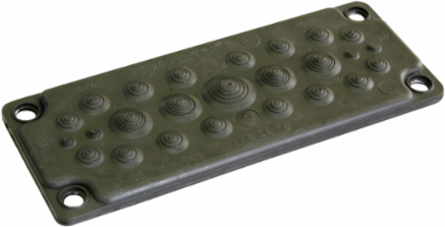

Schneider Electric NSYAECPFLT25 Cable entry membrane, PanelSeT, Spacial, type FL21 with 27 entrances IP66

Cable entry membrane, PanelSeT, Spacial, type FL21 with 27 entrances IP66
  • MPN: NSYAECPFLT25
  • PPN: SCH-NSYAECPFLT25

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$45.11/ EA

Description

Cable entry membrane, PanelSeT, Spacial, type FL21 with 27 entrances IP66

Specifications

Environment

Ambient Air Temperature For Operation
-40-100 °C
Ip Degree Of Protection
IP66
Environmental Characteristicoil resistant UL 157 FIMKO || UV resistant || weatherproof || fire resistance UL 94 V0
Flame RetardanceV0 UL 94

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP100104EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Mounting Support
cable gland plate
Fixing Mode
by fixing element
Width
external 214 mm || fixing center 194 mm
Material
TPE (thermoplastic elastomer)
Cable Entry Number
25
Net Weight0.32 kg
Depthfixing center 62 mm || external 88 mm
Height30 mm
Cable Entry Number4 x 5-7 mm || 4 x 8-12 mm || 4 x 14-20 mm || 12 x 10-14 mm || 1 x 20-26 mm
Colourgrey RAL 7035)

Overview

Lead Time
Usually Ships within 4 Weeks

Specifications

Range Compatibility
Spacial Spacial S3D compact enclosure || Spacial Spacial CRN compact enclosure || Spacial Spacial SF suitable enclosure
Product Or Component Type
cable entry membrane
Range
Spacial
Device Application
multi-purpose
Accessory / Separate Part Categorycable management accessory
Device Composition1 membrane || 1 fixing elements
Quantity Per Setset of 1
