Schneider Electric XPSMCMME0000 Modicon MCM Memory Card, 512MB, 18mm Depth, 21.5mm Height
Schneider Electric XPSMCMME0000 Modicon MCM Memory Card, 512MB, 18mm Depth, 21.5mm Height
- MPN: XPSMCMME0000
- PPN: SCH-XPSMCMME0000
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$131.94/ EA
Description

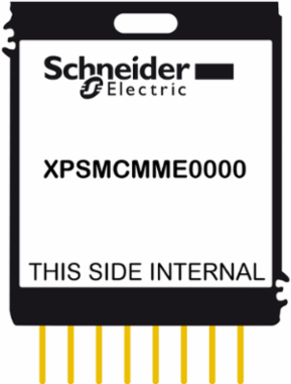

This Modicon MCM memory card is used to save safety PLC configuration data for subsequent transfer to a new PLC without using a PC. It enables quick and easy restart of your safety controller after an incident, without using a PC or checking configuration parameters. Its capacity is 512MB. Its dimensions are 18mm (Depth), 21.5mm (Height), and 2mm (Width). It weighs 0.004kg. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. This memory card is compatible with the expansion modules and the safety controllers CPU. The memory card instals in the slot in the rear panel of the controller. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Relative Humidity
- 10-95 % without condensation
Ambient Air Temperature For Storage-20-85 °C
Complementary
- Height
- 21.5 mm
- Quantity Per Set
- 1
- Depth
- 18 mm
Accessory / Separate Part Categoryseparate parts
Width2 mm
Net Weight0.004 kg
Specifications
- Range Of Product
- Preventa Safety automation
- Product Compatibility
- XPSMCM
- Memory Usage
- save and transfer configuration
Memory Capacity512 MB
Accessory / Separate Part Typememory card
Memory TypeSDRAM
