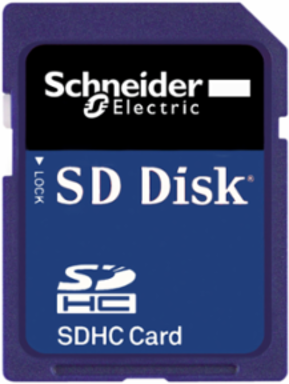

Schneider Electric TMASD1 Modicon 256 MB Memory Card for M221 Controller

MPN: TMASD1
PPN: SCH-TMASD1
UNSPSC: 32151705

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$85.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This memory card is proposed as an option available for Modicon M221 and M221 Book logic controllers. It s used for backing up and transferring applications, loading firmware, data logging. It is also used for duplicating applications between controllers. It has 256 MB capacity.

Features

SD card and USB port
2 analog inputs and a broad choice of I/Os
Run/stop switch and cartridge extension
Ethernet and serial line ports
A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Product Specific Application	program transfer, application backup
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2120
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Data Retention Time	10 year(s) 25 °C
Memory Type	flash
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Accessory / Separate Part Type	SD card
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Range Of Product	Modicon M221, Modicon M251, Modicon M241
Local Publishable Date	2026-03-26
Device Type	PLC System - PLC Component
Traceability	No
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Memory Capacity	256 MB
Mtbf Reliability	3000000 H
Resistance To Electrostatic Discharge	15 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
Shock Resistance	15 gn IEC 61131-2 2007
Vibration Resistance	1 gn IEC 61131-2 2007
Accessory / Separate Part Category	separate parts
Number Of Read/Write Cycles	100000
Customs Code	8523510000

Environment Attributes Main

Ambient Air Temperature For Operation	-10-70 °C, -10-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Relative Humidity	0-95 % without condensation

Ambient Air Temperature For Storage	-25-85 °C, -25-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Packaging Made With Recycled Cardboard	No
Product Compatibility	logic controller
Reach Regulation	Free of Substances of Very High Concern above the threshold
