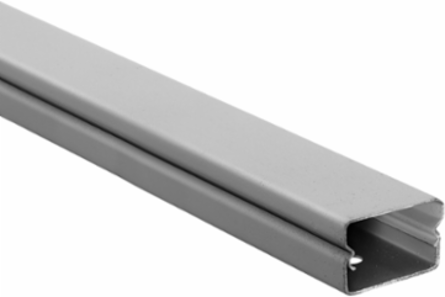

Bryant HBL2000BCGY Metal Raceway 5 Foot Base and Cover, Steel, Gray, 600V Rated, NEMA 1
Bryant HBL2000BCGY Metal Raceway 5 Foot Base and Cover, Steel, Gray, 600V Rated, NEMA 1
- MPN: HBL2000BCGY
- UPC: 783585214047
- PPN: HBL-HBL2000BCGY
- UNSPSC: 39131710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$7.37/ EA
Description
Metal Raceway, 5' Base/Cover, HBL2000 Series, Gray
Features
- Higher capacity power applications
- Available in cover only or base and cover options
- Cover is 0.040 Inch (1.016) thick which allows up to 600V AC
Specifications
Specifications
- Country of Origin
- United States
- Width
- 1.3000 in
- Performance
- Electrical - Rating - 300V Rated
- Length
- 5 ft
- Type
- Base and Cover
- Style
- Single Channel
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2000BCGY
- Series
- HBL2000
- BOX SIZE
- 1.705x60.435x8.825 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585214047
- Each - Number of Sub Packs
- 1
- Package - Total Units
- 1 EA
ColorGray
Industry Standard(s)CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5
EnclosureNEMA 1 Rating
StandardCSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5
Enclosure TypeNEMA 1 Rating
Description - InvoiceRACEWAY, 5' BASE/COV,HBL2000 SER,GY,600V
Harmonization Code7326908688
MSDS FlagNo
MaterialSteel
Base Unit of MeasureFT
Carton - Gross Weight per Pack26.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Each - Pack DescriptionFeet
Package Quantity1 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
