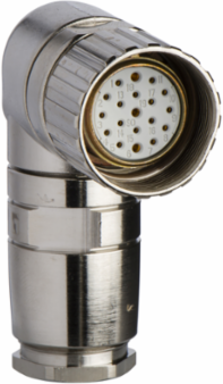

Telemecanique Sensors XZCC23FCM190S Female, M23, 19 pin, elbowed connector, cable gland Pg 13.5

Female, M23, 19 pin, elbowed connector, cable gland Pg 13.5
  • MPN: XZCC23FCM190S
  • PPN: TES-XZCC23FCM190S
  • UNSPSC: 39121528

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$941.08/ EA

Description

This XZ Connector has a straight 19-pin M23 female connector with solder terminal connections with a Pg 13.5 cable gland entry. It has a metal enclosure with IP65 degree of protection, makes it ideal for heavy duty use in harsh conditions. It is compatible with XCSLF*M3 and XCSLE*M3 key operated safety interlock switches (with M23 19-pin male connector).

Specifications

Environment

Ambient Air Temperature For Operation
-25-110 °C
Ip Degree Of ProtectionIP65

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Minimum Insulating Resistance
10000000 GΩ
Cable Connector Fixing
screw-on
Line Rated Current
7.5 A
Net Weight
0.15 kg
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Gland TypePg 13.5
Enclosure Materialmetal
Contact Resistance5000 µOhm

Specifications

Collar Material
metal
Range Of Product
Telemecanique Cabling components
Status Led
without
Cable Connection
solder terminal 1 mm² 9-12 mm
Electrical Connectionelbowed female connector M23, 19 pins
Accessory / Separate Part Categorycabling accessories
Accessory / Separate Part Typeconnector
