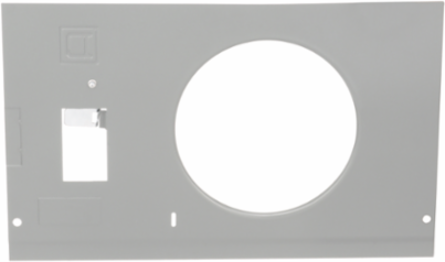

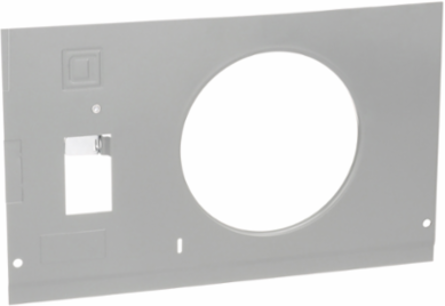

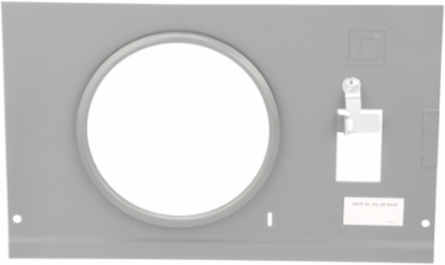

Square D MCBC1004 Square D Meter Centre Cover Plate for 125A 4/5 Jaw Socket
- MPN: MCBC1004
- UPC: 785901756897
- PPN: SCH-MCBC1004
CAD
$133.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Meter Centres provide a compact and versatile metering and distribution centre for today's residential, commercial, and industrial markets. All metering stacks have factory installed meter sockets and vertical bus bars, requiring only onsite installation of circuit breakers and main bus links. This cover plate is a Square D Meter Centre meter stack accessory. It is used for 240V 125A 4 or 5 jaw meter socket and breaker to cover the meter and breaker section. It can be used on MC43L, MC43L3, MC54L3, and MC54L.
Documentation & Downloads
Specifications
Key Specifications
| Series Name | A |
|---|---|
| Product Or Component Type | cover plate |
| Range Of Product | Square D |
|---|
Complementary
| Product Destination | Meter Centre |
|---|---|
| [In] Rated Current | 125 A |
| Number Of Jaws | 4 || 5 |
|---|---|
| Product Compatibility | MC43L3 || MC54L3 || MC54L || MC43L |
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Compliant with Exemptions |
Environment
| Product Certifications | CSA |
|---|
