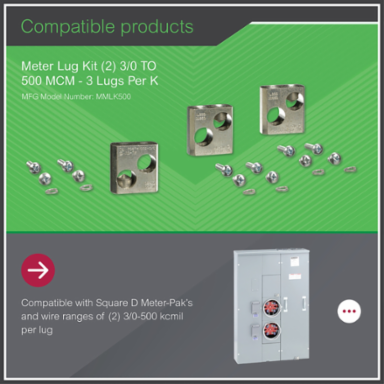

Square D MMLK500 MP Meter Pak Lug Kit, 3 Lugs for 3/0 AWG to 500 kcmil Wires, UL Listed
Square D MMLK500 MP Meter Pak Lug Kit, 3 Lugs for 3/0 AWG to 500 kcmil Wires, UL Listed
- MPN: MMLK500
- UPC: 785901152811
- PPN: SCH-MMLK500
- UNSPSC: 39121102
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$358.09/ EA
Description

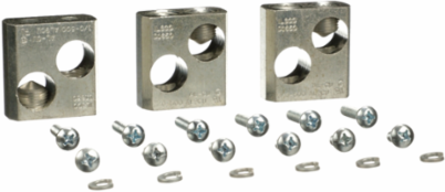

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. This MP accessory is an optional lug kit for MP meter pak units. This set of lugs contains lugs with two openings. Each lug opening will accept 3/0 AWG to 500 kcmil copper or aluminum wire. These lugs are UL Listed.
Features
- Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection
- 125A, 200A, and 225A units available, ringless or ring type with varied bypass options
- Suitable only for use as service equipment
- Surface mount, convertible to semi flush with field installed flange kit
- Pivoting mounting feet at meter center base
Specifications
Conformance Attributes
- Product Certifications
- UL Listed
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- H And D Domain
- Safety
- H And D Enrichment Assignment
- yes
- H And D Enrichment Class 3
- Meter enclosures
- AWG Gauge
- AWG 3/0...500 kcmil 2 aluminium/copper)
- Enclosure Material
- steel
- Package Weight Lbs
- 0.449 kg
- Product Or Component Type
- lug kit
- Range Of Product
- MP meter-pak
- Sustainable Packaging
- No
- Medium Desc

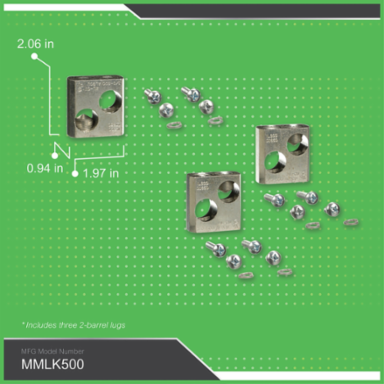

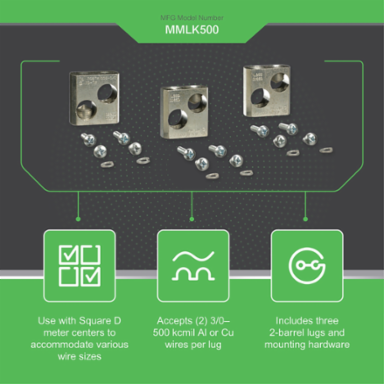

- MP Meter Pak, lug kit, consists of three lugs, two 3/0 AWG to 500 kcmil
- Product Kit Identifier
- N
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Local Publishable Date2026-02-19
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Market SegmentationCommercial
H And D SubrangeRESI
H And D Enrichment FunctionACCESSORIES
H And D Enrichment Class 4Meter enclosure accessory
Body Typedouble barrel
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 3
ReturnabilityYes
Accessory Separate Part Category2connection accessory
Stocking FlagN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- lug kit
Range Of ProductMP meter-pak
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 0.94 in
