Weidmuller 1925740000 MHS 6
- MPN: 1925740000
- PPN: WDM-1925740000
CAD
$20.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

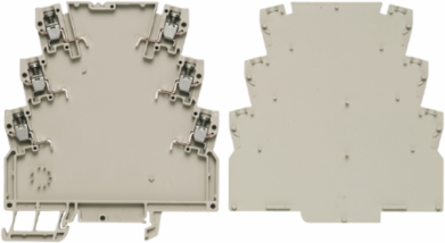

Small housing, OMNIMATE Housing - MICROBOX Pebble grey, Width: 6.1 mm
Documentation & Downloads
Specifications
System Characteristics
| Type of connection | Clamping yoke connection |
|---|---|
| Number of connection levels | 3 |
| PCB thickness | 1 mm |
| Tolerance for the PCB shape | ±0.1 mm |
| Continuous current of cross-connection | 10 A |
| Contact to terminal rail | No |
| Encapsulation option | Yes |
| Number of connections | 6 |
|---|---|
| Number of PCBs per module | 1 |
| Type of contact to PCB | Solder connection, direct |
| Cross-connection | Yes |
| Continuous current of cross-connection/PCB | 32 A |
| Protection degree | IP20 |
| Power loss, max. | 0.8 W |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 88 mm |
|---|---|
| Width | 6.1 mm |
| Height | 97.8 mm |
| Net weight | 33.1 g |
| Length (inches) | 3.465 inch |
|---|---|
| Width (inches) | 0.24 inch |
| Height (inches) | 3.85 inch |
Rated Data Acc. To Iec
| Rated current, max. number of poles (Tu=20°C) | 10 A |
|---|---|
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Rated current, max. number of poles (Tu=40°C) | 10 A |
|---|---|
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
Material Data
| Insulating material | Wemid (PA) |
|---|---|
| Colour chart (similar) | RAL 7032 |
| Comparative Tracking Index (CTI) | ≥ 600 |
| Contact material | CuZn |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
| Colour | Pebble grey |
|---|---|
| Insulating material group | IIIa |
| UL 94 flammability rating | V-0 |
| Contact surface | tinned |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-02 |
| eClass 10.0 | 27-18-27-02 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-92 |
