Schneider Electric NSYMF106 Microperforated mounting plate H1000xW600 w/holes diam 3,6mm on 12,5mm pitch

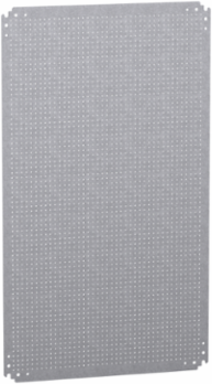

Microperforated mounting plate H1000xW600 w/holes diam 3,6mm on 12,5mm pitch
  • MPN: NSYMF106
  • PPN: SCH-NSYMF106

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$167.26/ EA

Description

Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is600 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel.

Specifications

Complementary

Width
550 mm
Thickness
2.5 mm
Depth
125 mm
Permanent Permissible Load
150 kg
Height965 mm
Net Weight9.78 kg
Fixing Modescrewed on backstuds M8 || by fixing element

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2202003EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Specifications

Enclosure Nominal Dimensions
H: 1000 mm W: 600 mm
Material
galvanised steel
Quantity Per Set
set of 1
Device Application
multi-purpose
Range
Spacial
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Product Or Component Typemounting plate
Mounting Plate Descriptionmicroperforated
Mounting Locationstep slide || direct fixing on backstuds

Contractual warranty

Warranty
18 months
