Schneider Electric NSYPMM5472 Thalassa PLS Metallic Mounting Plate 54x72cm Galvanised Steel 150 Kg Load
Schneider Electric NSYPMM5472 Thalassa PLS Metallic Mounting Plate 54x72cm Galvanised Steel 150 Kg Load
- MPN: NSYPMM5472
- PPN: SCH-NSYPMM5472
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$135.32/ EA
Description

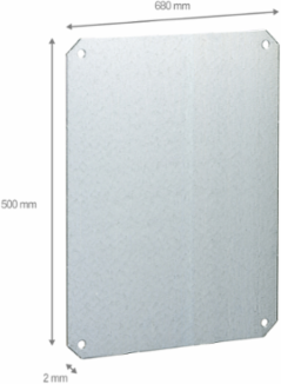

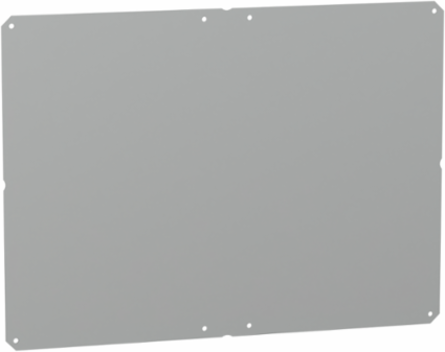

Thalassa PLS metallic mounting plate. For boxes H is540 x W is720 mm. Multi-purpose application. Mounting location on back inserts (fixing by screw type M6). Plain mounting plate. 150 Kg permanent permissible load. Galvanised Steel. Grey RAL 7035.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2025-04-05
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- 1 mounting plate
- Fixing Mode
- by screws M6 - on back inserts
- Mounting Location
- back inserts
- Permanent Permissible Load
- 150 kg
- Product Or Component Type
- mounting plate
- Returnability
- No
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP2202003EN
- Height Nominal
- nominal: 540 mm
- Width Nominal
- nominal: 720 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Mounting Plate Descriptionplain
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Warranty In Months18
Offer Owner Code190789
Height Usefulnominal: 540 mm
Width Realnominal: 720 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 21.26 in
Width28.35 in
