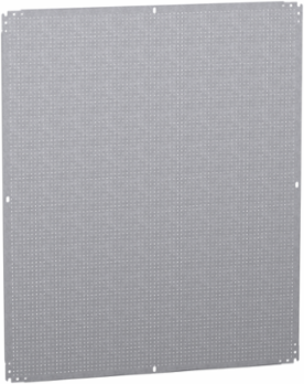

Schneider Electric NSYMF1210 Microperforated Mounting Plate 1200x1000mm, Galvanised Steel, 180 kg Load
- MPN: NSYMF1210
- PPN: SCH-NSYMF1210
CAD
$392.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1200 x W is1000 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Nominal Dimensions
- H: 1000 mm W: 1200 mm || - H: 1200 mm W: 1000 mm
- Material
- galvanised steel
- Quantity Per Set
- set of 1
- Device Application
- multi-purpose
- Range
- Spacial
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Product Or Component Typemounting plate
Mounting Plate Descriptionmicroperforated
Mounting Locationdirect fixing on backstuds || step slide
Complementary
- Width
- 965 mm
- Variant Particularity
- installation in enclosures with inverted dimensions
- Net Weight
- 21.551 kg
- Fixing Mode
- screwed on backstuds M8 || by fixing element
Height1165 mm
Thickness2.5 mm
Depth125 mm
Permanent Permissible Load180 kg
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
