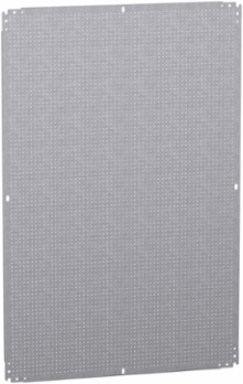

Schneider Electric NSYMF128 Microperforated mounting plate H1200xW800 w/holes diam 3,6mm on 12,5mm pitch

Microperforated mounting plate H1200xW800 w/holes diam 3,6mm on 12,5mm pitch

Schneider Electric NSYMF128 Microperforated mounting plate H1200xW800 w/holes diam 3,6mm on 12,5mm pitch

MPN: NSYMF128
PPN: SCH-NSYMF128

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$333.91/ EA

Loading add to cart quantity...

Description

Microperforated mounting plate H1200xW800 w/holes diam 3,6mm on 12,5mm pitch

Specifications

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2202003EN

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of SvhcYes

Specifications

Enclosure Nominal Dimensions: H: 1200 mm W: 800 mm || - H: 800 mm W: 1200 mm

Material: galvanised steel

Quantity Per Set: set of 1

Device Application: multi-purpose

Range: Spacial

Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM

Accessory / Separate Part Categorymounting accessory

Product Or Component Typemounting plate

Mounting Plate Descriptionmicroperforated

Mounting Locationstep slide || direct fixing on backstuds

Complementary

Width: 765 mm

Thickness: 2.5 mm

Depth: 125 mm

Permanent Permissible Load: 180 kg

Height1165 mm

Net Weight17.064 kg

Fixing Modescrewed on backstuds M8 || by fixing element

Contractual warranty

Warranty: 18 months
