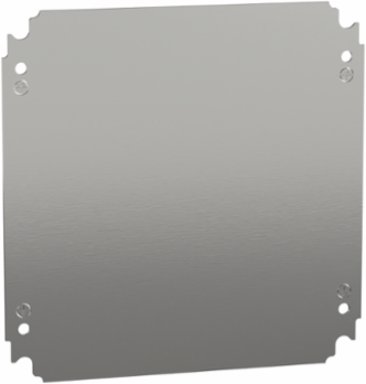

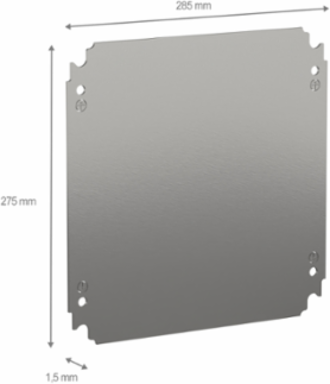

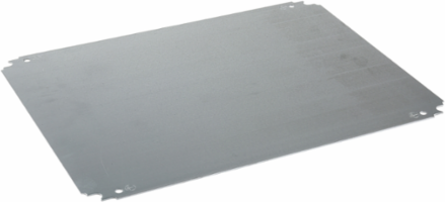

Schneider Electric NSYMM33 Plain Mounting Plate 300mm x 300mm Galvanised Steel 60kg Load

MPN: NSYMM33
PPN: SCH-NSYMM33
UNSPSC: 39121321

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$11.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is300 x W is300 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Set of 1.

Features

Reliable and sturdy design.
Smooth surface for easy mounting.
Fast setup.
Ideal for industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Width	9.84 in

Height	9.84 in
Weight	900 g

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	- H: 300 mm W: 300 mm, - H: 300 mm W: 300 mm, - H: 300 mm W: 300 mm, - H: 300 mm W: 300 mm, - H: 300 mm W: 300 mm, - H: 300 mm W: 300 mm
Mounting Location	step slide, direct fixing on backstuds
Carbon Footprint Of The End Of Life Phase C1 To C4	3 kg CO2 eq., 2.5653003033937725
Carbon Footprint Of The Manufacturing Phase A1 To A3	5 kg CO2 eq., 4.840648152808686
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Plate Description	plain
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	9 kg CO2 eq.
Data Source	extrapolated product
Height Useful	250 mm
Width Real	250 mm
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	98

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Fixing Mode	screwed on backstuds M8, by fixing element
Carbon Footprint Of The Distribution Phase A4	1.7867904152520657, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.029288184478596522, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Material	galvanised steel
Permanent Permissible Load	60 kg
Product Or Component Type	mounting plate
Range	PanelSeT
Software Version	v6.1
Thickness	1.8 mm
Database Version	2023-02
Height Nominal	250 mm
Width Nominal	250 mm
Accessory / Separate Part Category	mounting accessory
Customs Code	7326190080
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2202003EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	9.22202705593312
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-09
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
