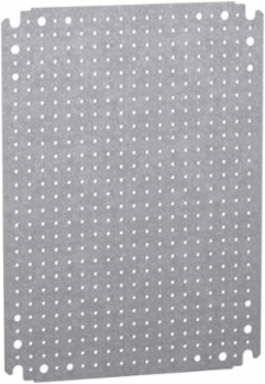

Microperforated Mounting Plate 300x400mm, Galvanised Steel, 60kg Load
Microperforated Mounting Plate 300x400mm, Galvanised Steel, 60kg Load
Schneider Electric

Schneider Electric NSYMF43 Microperforated Mounting Plate 300x400mm, Galvanised Steel, 60kg Load

  • MPN: NSYMF43
  • PPN: SCH-NSYMF43
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $40.09

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is300 x W is400 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Reversible dimensions is Can be installed in enclosure with inverted dimensions.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Spain, United States
    Width
    13.78 in
    Height9.84 in
    Depth125 mm

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Enclosure Nominal Dimensions
    - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 300 mm W: 400 mm, - H: 300 mm W: 400 mm, - H: 300 mm W: 400 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 300 mm W: 400 mm, - H: 300 mm W: 400 mm
    Mounting Location
    step slide, direct fixing on backstuds
    Local Publishable Date
    2026-04-18
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1916
    China Rohs In Scope
    No
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Application
    multi-purpose
    Material
    galvanised steel
    Permanent Permissible Load
    60 kg
    Product Or Component Type
    mounting plate
    Range
    PanelSeT
    Sustainable Packaging
    No
    Pep Code
    ENVPEP2202003EN
    Height Useful
    250 mm
    Width Real
    350 mm
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    Yes
    Warranty (In Months)
    18
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Fixing Modescrewed on backstuds M8, by fixing element
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Energy Efficiency OptimizedFalse
    Mounting Plate Descriptionmicroperforated
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quantity Per Setset of 1
    ReturnabilityNo
    Thickness1.8 mm
    Height Nominal250 mm
    Width Nominal350 mm
    Accessory / Separate Part Categorymounting accessory
    Package Weight(Lbs)1.302 kg
    Take-backNo

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    Yes
    Eu Rohs Directive
    Compliant
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2202003EN
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP2202003EN

    General Attributes

    Product Or Component Type
    mounting plate

    ETIM

    ETIM 8
    EC000213
    ETIM 9EC000213

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
