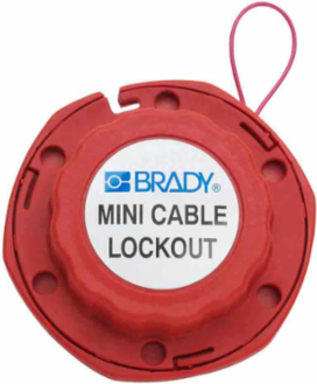

Brady 50940 MINI CABLE LOCKOUT Universal Lockout Device
- MPN: 50940
- UPC: 754473509408
- PPN: BRD-50940
- UNSPSC: 39121905
CAD
$71.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

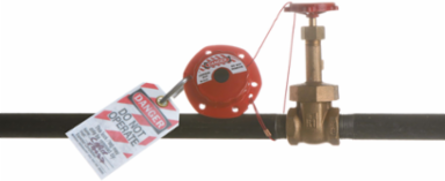

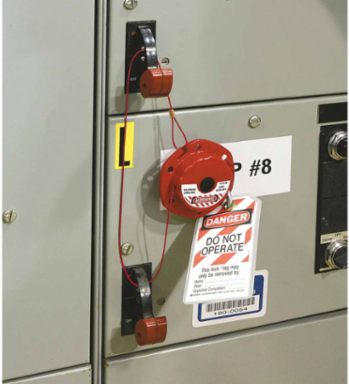

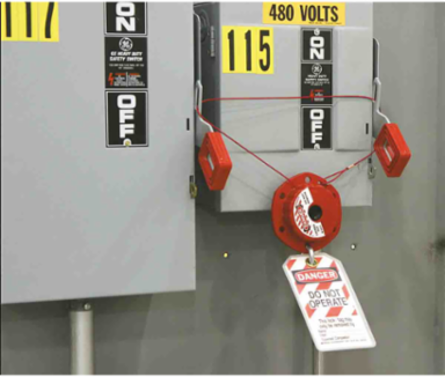

Mini Cable Lockouts are perfect for use on disconnect switches and small gate valves.
Features
- Mini Cable Lockouts are extremely compact and portable, cable stored internally
- Push button self-winding mechanism retracts automatically to tightly cinch the cable, leaving no slack
- Device comes complete with a sheathed metal lockout cable attachment
- Superior chemical, corrosion and temperature-resistant properties
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Cable Finish/Coating
- Vinyl
- Color
- Red
- Language
- English
- Primary Noun, Basic Function
- Lockout Device
- Text Legend
- DANGER LOCKED OUT DO NOT REMOVE
- Trade Name
- Mini Cable Lockout
- Adhesive (Y/N)
- No
- Cable Material
- Steel
- SAP B-Number
- LOTO-38
- Body Depth (mm/cm/m)
- 45.2 mm
- Body Diameter (mm/cm/m)
- 101.6 mm
- Body Height (mm/cm/m)
- 101.6 mm
- Body Size (mm/cm/m)
- 101.6 mm H x 101.6 mm W x 45.2 mm D
- Body Width (mm/cm/m)
- 101.6 mm
- Cable Diameter (mm/cm/m)
- 1.78 mm
- Cable Length (mm/cm/m)
- 2.44 m
- Diameter (mm/cm/m)
- 100.00 mm
- Maximum Service Temperature °C
- 120 °C
- Maximum Shackle Diameter (mm/cm/m)
- 7.87 mm
- Minimum Service Temperature °C
- -20 °C
- Minimum Shackle Clearance - (mm/cm/m)
- 19.05 mm
- Size - Length (m)
- 2.44 m
Cable ColorRed
Cable IncludedYes
Enables Industry ComplianceOSHA 1910.147
Maximum Number of Padlocks6
Risk TypeMechanical Risk
Total Qty per Pack1 Piece(s) / Pack
TypeMini Cable Lock-Out
Brady Material NumberLOTO-38
MaterialPolypropylene
Body Depth (in/ft/yd)1.78 in
Body Diameter (in/ft/yd)4 in
Body Height (in/ft/yd)4 in
Body Size (in/ft/yd)4 in H x 4 in W x 1.78 in D
Body Width (in/ft/yd)4 in
Cable Diameter (in/ft/yd)0.07 in
Cable Length (in/ft/yd)8 ft
Depth (mm/cm/m)45.00 mm
Dimensions (Metric)100.00 mm Dia x 2.44 m L x 45.00 mm D
Maximum Shackle Diameter (in/ft/yd)0.31 in
Maximum Wire Diameter (mm/cm/m)1.60 mm
Minimum Shackle Clearance (in/ft/yd)0.75 in
Minimum Wire Diameter (mm/cm/m)1.60 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
Contains 3TG MineralNo-Does Not Contain
