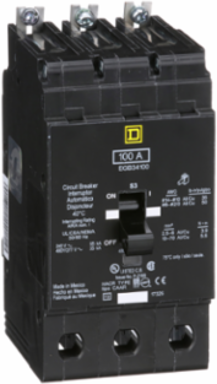

Schneider Electric EGB34100 Mini Circuit Breaker 100A 3-Pole 480Y/277 VAC Bolt-On, 65 kA Max
Schneider Electric EGB34100 Mini Circuit Breaker 100A 3-Pole 480Y/277 VAC Bolt-On, 65 kA Max
- MPN: EGB34100
- UPC: 785901311188
- PPN: SCH-EGB34100
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1777.20/ EA
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 100A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.
Specifications
Specifications
- Module Type
- E-Frame
- Trip Unit Rating
- 2300-2300 A
- Device Short Name
- EGB
Range Of Product125 A Frame EDB-EGB-EJB
Product Or Component Typeminiature circuit-breaker
Complementary
- Height
- 5.66 in
- Tightening Torque
- 3.9-3.9 N.m 2.5-6 mm² AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² AWG 8...AWG 2/0)
- Product Destination
- NF panelboard
- Number Of Spaces Required
- 3
- Net Weight
- 4 lb(US)
- Mounting Mode
- bolt-on
- Protection Type
- short-circuit || overload
- Awg Gauge
- AWG 12...AWG 2/0 aluminum || AWG 14...AWG 2/0 copper
- Depth
- 4.05 in
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 480Y/277 V AC
Holding Current1000 A
Breaking Capacity CodeG
Electrical Connectionlugs aluminum
Number Of Spaces3
Circuit Breaker ApplicationHACR rated
[In] Rated Current100 A
Local Signallingtrip indicator
Width2.94 in
Breaking Capacity35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
Number Of Poles3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Environment
- Product Certifications
- cULus
Ambient Air Temperature For Operation40 °C
