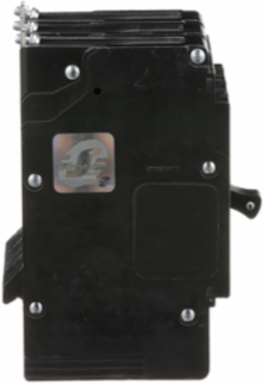

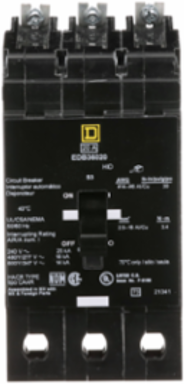

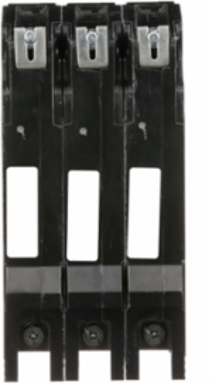

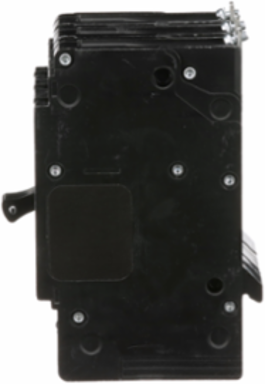

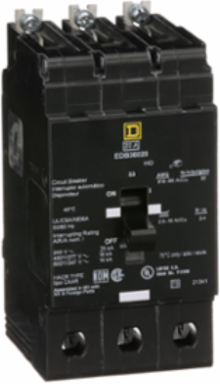

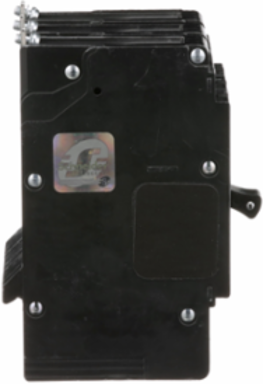

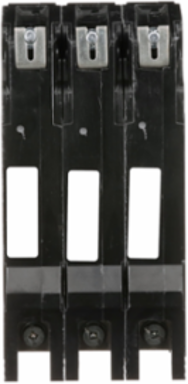

Schneider Electric EDB36060 Mini Circuit Breaker, 60A 3 Pole, 600Y/347VAC, Bolt-On, 25kA Max

MPN: EDB36060
UPC: 785901235620
PPN: SCH-EDB36060

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$863.86

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 60A, 3 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.

Features

Specifically engineered for the Square D NF Series, the EDB36060 is a bolt-on branch circuit breaker that ensures a secure, vibration-resistant connection to the bus bar. This eliminates the installation guesswork for industrial electricians, providing a seamless fit that maintains the integrity and UL listing of your existing Schneider Electric distribution equipment.
Rated for high-voltage applications up to 600Y/347V AC, this 3-pole breaker is the ideal solution for protecting heavy-duty 480V systems. It provides the necessary dielectric strength to safely handle industrial power distribution, ensuring your lighting ballasts and small motor circuits are protected against overloads without premature equipment failure.
With a robust 25,000 Ampere Interrupting Rating at 480V, this breaker is designed to safely quench high-energy arcs and clear faults instantly. This high-tier AIC rating protects your facility's infrastructure from catastrophic damage during a short circuit, keeping your downstream equipment safe and reducing the risk of fire or arc flash incident
Utilizing a sophisticated thermal-magnetic trip unit, the EDB36060 provides a dual-layer defense: a bi-metallic element for long-time overload protection and an instantaneous magnetic trip for short-circuit events. This calibrated response allows for the high inrush currents typical of industrial loads while remaining sensitive enough to trip before cable insulation is damaged.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	4.05 in

Compliance	TAA Compliant

Complementary Attributes

Line Rated Current	60 A

Important Information Attributes

Persona Type Ids	EU, LC, OM
Protection Type	short-circuit, overload
Carbon Footprint Of The Distribution Phase [A4]	0.5238813044881674, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.6177324052106725, 0.6 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	1 kg CO2 eq., 1.40182223402897
Local Publishable Date	2026-06-30
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Awg Gauge	12 AWG...2/0 AWG aluminium14 AWG...2/0 AWG copper
Device Short Name	EDB
Energy Efficiency Optimized	False
Local Signalling	trip indicator
Mounting Mode	bolt-on
Number Of Spaces	3
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit-breaker
Returnability	Yes
Sustainable Packaging	Yes
Trip Unit Rating	1800-1800 A
Pep Code	ENVPEP2510013EN
Pep Verification Date	2025-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	5.66 in
Certificate Agency	cULus
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Tightening Torque	3.9-3.9 N.m 2.5-6 mm² (14 AWG...10 AWG), 5.6-5.6 N.m 10-70 mm² (8 AWG...2/0 AWG)
Carbon Footprint Of The End-of-life Phase [C1 To C4]	3 kg CO2 eq., 2.5478116265143433
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	12 kg CO2 eq., 11.68139539809656
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2534
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Electrical Connection	lugs aluminium
Holding Current	630 A
Module Type	E-Frame
Number Of Poles	3
Number Of Spaces Required	3
Product Destination	NF panelboard
Range Of Product	125 A Frame EDB-EGB-EJB
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	17 kg CO2 eq.
Trip Unit Technology	thermal-magnetic
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	30
Width Nominal	2.94 in
[Ue] Rated Operational Voltage	600Y/347 V AC
Package Weight(Lbs)	1.631 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	16.77264296833871
Environmental Disclosure	ENVPEP2510013EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	40 °C
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2510013EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
