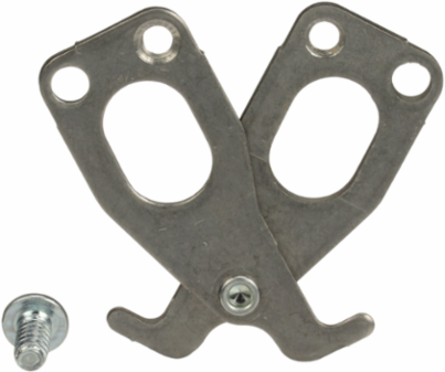

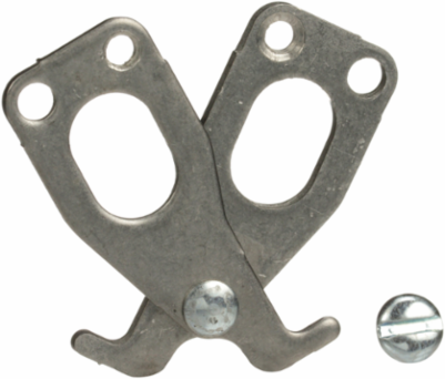

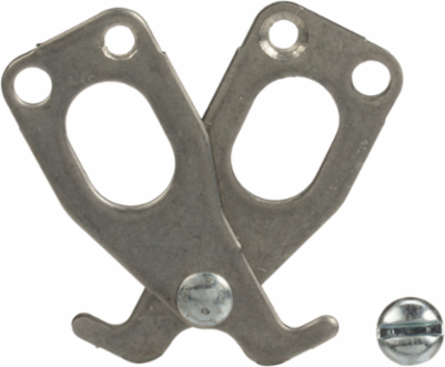

Square D HPAFD PowerPact H-Frame Circuit Breaker Padlock Device, 18 kA Breaking Capacity

PowerPact H-Frame Circuit Breaker Padlock Device, 18 kA Breaking Capacity - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/ca0840a964ba63c0b54c6b7c1492eb5abf1d6fba-medium.png

PowerPact H-Frame Circuit Breaker Padlock Device, 18 kA Breaking Capacity

Square D HPAFD PowerPact H-Frame Circuit Breaker Padlock Device, 18 kA Breaking Capacity

MPN: HPAFD
UPC: 785901077572
PPN: SCH-HPAFD

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$42.86/ EA

Qty:

Loading add to cart quantity...

Description

The PowerPact™ H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact H-Frame Circuit Breakers Padlock attachment is for a standard circuit breaker type. This padlocking device is certified toUL listed, CSA & IEC standards.

Specifications

Complementary

Product Destination: handle

Net Weight: 5 lb(US)

Locking Options Descriptionpadlocking device

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2206027EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2206027EN

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Specifications

Circuit Breaker Type: standard

Product Or Component Type: padlocking device

Product Destinationcircuit breaker

Breaking Capacity18 kA 480 V AC

Environment

Product Certifications: IEC || CSA || UL listed
