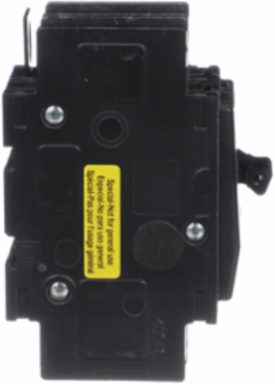

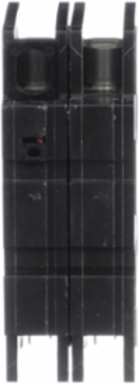

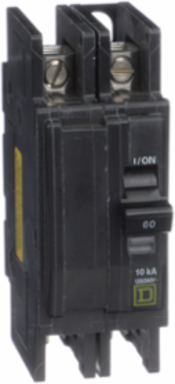

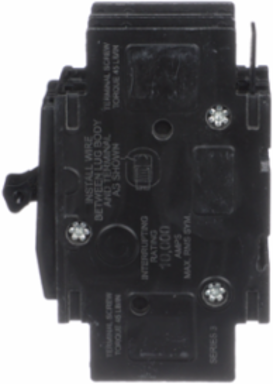

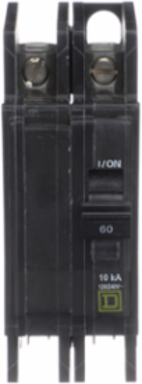

Square D QOUQ260 Mini Circuit Breaker, 60A, 2 Pole, 120/240 VAC, 10kA
- MPN: QOUQ260
- UPC: 785901323402
- PPN: SCH-QOUQ260
CAD
$317.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOUQ260, is ideal for OEM applications. Equipped with a feature of Quick connetion QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- Interrupt Rating
- 10kA
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- Unit mount
- Tightening Torque
- 45 lbf.in (5.08 N.m)
- Width
- 1.5 in (38.10 mm)
- Material
- Not specified
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
- Country of Origin
- Mexico
Voltage120/240 V AC, 120 V AC, 48 V DC
Circuit Breaker TypeStandard
Electrical ConnectionSlotted box lugs, line side and load side
AWG GaugeAWG 14 to AWG 2 aluminum/copper
Height4.05 in (102.87 mm)
Depth2.95 in (74.93 mm)
CertificationsIEC, UL Listed, CSA
Toxic Heavy Metal FreeYes
Halogen ContentHalogen free product
