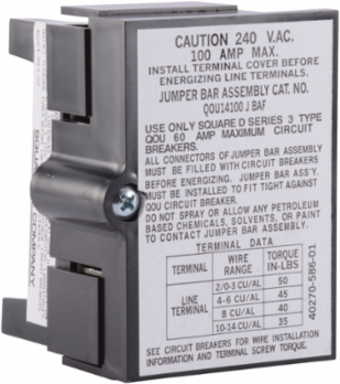

Square D QOU14100JBAF QOU accessories, jumper bar assembly, with front wiring, with base, single phase, 4P, 100A, quantity 40

MPN: QOU14100JBAF
UPC: 785901208242
PPN: SCH-QOU14100JBAF

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$180.72/ EA

Qty:

Loading add to cart quantity...

Description

QO™ and Square D™, QOU14100JBAF, is an accessory part for QOO Low Ampere Circuit breakers. Performed as1Ø, 4P, 100 A Jumper bar base with front wiring. Comes in a bulk pack.

Specifications

Important Information Attributes

Tightening Torque: 50-50 lbf.in (AWG 3...AWG 2), 45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in (AWG 8), 35-35 lbf.in (AWG 14...AWG 10)

Local Publishable Date: 2025-11-13

Stocking Flag: N

H And D Domain: Safety

H And D Enrichment Assignment: yes

H And D Enrichment Class 3: Circuit Breakers

Weee Scope: In

Scope Perimeter: Outside of Europe

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2534

China Rohs In Scope: No

With Recycled Cardboard: No

Product Contributes To Saved And Avoided Emissions: No

Energy Efficiency Optimized: False

Product Availability: Stock - Normally stocked in distribution facility

Sustainable Packaging: No

Pep Code: ENVPEP2111016EN

Pn: 1

Local Data StatusPublishable

Return IndicatorY

Stock Policy2

H And D SubrangeINDUS

H And D Enrichment FunctionACCESSORIES

H And D Enrichment Class 4Circuit breaker accessory

Weee Product Category5

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant

Rohs Eur Full Compliance StatusCompliant

China Rohs Label1

Without Single Use PlasticYes

Product Kit IdentifierN

Halogen Free StatusHalogen free product

ReturnabilityYes

Warranty In Months18

Offer Owner Code190788

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)

Halogene Performance: Halogen free product

Toxic Heavy Metal Free: Yes

Environmental Disclosure: ENVPEP2111016EN

Halogen Content Performance: Halogen free product

Packaging Without Single Use Plastic: Yes

Pep Code: ENVPEP2111016EN

Take BackNo

Recycled Metal Content At Cr Level0 %

Mercury FreeYes

Eu Rohs DirectiveCompliant

Packaging Made With Recycled CardboardNo

Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Country of Origin: United States

Contractual Warranty Attributes

Warranty Period: 18 months

Warranty18 months

Downloads
