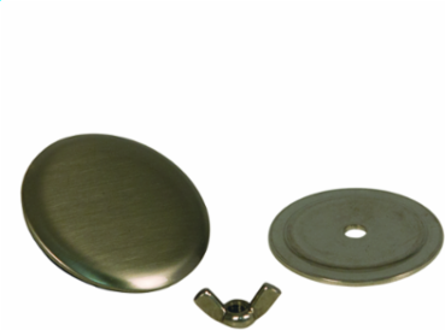

Wiegmann WASPBGSS Mini Oil Tight Hole Seal Pushbutton .88 Inch 304 Stainless Steel
- MPN: WASPBGSS
- UPC: 786725490905
- PPN: HBL-WASPBGSS
- UNSPSC: 39121324
CAD
$52.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Oil Tight Hole Seal Pushbutton .88 Inch 304 Stainless Steel
Features
- Quick wing nut
- Oil resistant gasket
- Smooth grained finish
- Maintains UL rating of the enclosure when like materials are used
- Miniature oil tight pushbutton holes. Quick wing nut. Oil resistant gasket. Grained finish.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Industry Standard(s) | cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791 |
| Application | Designed to seal extra push-button holes, conduit openings, and knockout openings from dirt, dust, oil and water. |
| Height | 1 in |
| Special Features | Miniature oil tight pushbutton holes. Quick wing nut. Oil resistant gasket. Grained finish. |
| Type | Accessory |
| Weight | 0.05 lb. |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | SEAL,OT,MINIATURE PB |
| Harmonization Code | 7326908688 |
| Lead Time | 14 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Material | Stainless Steel |
| BOX SIZE | 0.700x4.300x3.750 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725490905 |
| Pallet Height | 32.500 in |
| Pallet Weight | 265.000 lb. |
| NAICS Code | 3359326101 |
| Dimensions | 4 in x 1.5 in x 1 in |
|---|---|
| Length | 4 in |
| Color | Stainless Steel |
| Size | 4 in x 1.5 in x 1 in |
| Standard | cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791 |
| Width | 1.5 in |
| Accessory Type | Hole Seal |
| Class Code | P05 |
| Freight Class Code | 13330004 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P05P075 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.050 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
