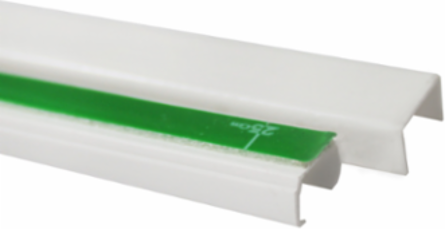

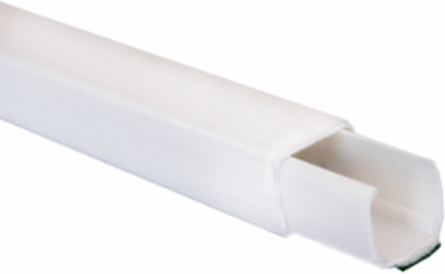

Schneider Electric DXN10031E Mini Trunking 13x7 mm, 1 Compartment, Adhesive, PVC, White

Mini Trunking 13x7 mm, 1 Compartment, Adhesive, PVC, White
Mini Trunking 13x7 mm, 1 Compartment, Adhesive, PVC, White
  • MPN: DXN10031E
  • PPN: SCH-DXN10031E

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$5.55/ EA

Description

Schneider Electric's Mini Trunking is designed to provide organized and efficient cable management in various settings. With its compact dimensions of 13x7 mm and a single compartment, this trunking allows for easy installation and concealment of wiring while maintaining a clean aesthetic. The adhesive backing simplifies application, enabling quick mounting on walls or surfaces without the need for additional hardware. Made from durable PVC, this white trunking not only complements a variety of interiors but also ensures resistance to wear and tear, making it an ideal solution for both commercial and residential applications.

Specifications

Trunking Dimension
13 x 7 mm
Ambient Air Temperature for Operation
-5 to 60 °C (23 to 140 °F)
Width
13 mm (0.51 in)
Fixing Mode
Adhesive, Screw-fixed
Colour
White RAL 9003
Flame Retardance
HB UL 94 V0, M1 UNE 23727, self-extinguishing
Environmental Characteristic
Lubricant resistant, Impact resistant, Oil resistant
Ik Degree of Protection
IK07
Warranty
5 Years
Device Presentation
With cover
Compartment Partitioning1 compartment
Length2000 mm (78.74 in)
Height7 mm (0.28 in)
MaterialPVC (polyvinyl chloride)
Surface FinishBrilliant
StandardsEN 50085, UL 1595
IP Degree of ProtectionIP40
SustainabilityGreen Premium product, REACh free of SVHC, EU RoHS compliant, China RoHS compliant
RangeDexson

Downloads
